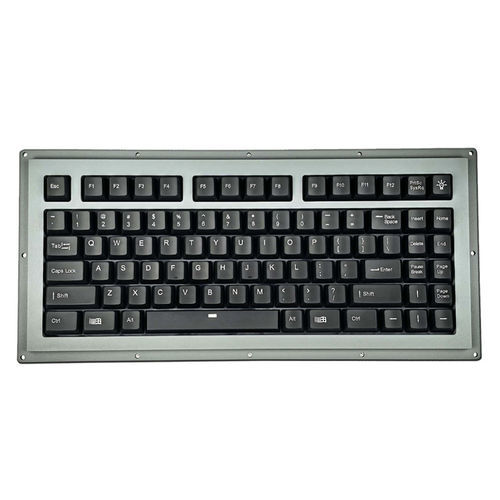

Panel-mount keyboard KH-K86-355

with mechanical keys86-key87-key

Product overview
The KH-K86-355 is a panel-mount keyboard designed for integration into military and marine control systems. It features an army green high-strength alloy front panel and a backlit key set, engineered to meet the environmental and mounting requirements of vehicle consoles, naval interiors and portable field equipment.

The unit supports USB connectivity with alternative interfaces available and offers customization options for OEM integration.

Features

• Army green high-strength alloy front panel
• 86-key layout (marketing) / 87 backlit keys (specification)
• Panel-mount form factor for secure installation
• Backlit keys for operation in low-light conditions
• Mechanical key switches with 2.00 mm travel
• USB interface standard; other interfaces available on request
• Customizable options for key legends, layouts and mounting

Technical specifications

• Model: KH-K86-355 (product model designation)
• Dimensions: 355 x 165 mm
• Front panel material/color: High-strength alloy, army green
• Form factor: Panel-mount
• Key count: 86 keys includes FN keys
• Switch type: Mechanical switches, 2.00 mm travel
• Interface: USB (other interfaces available)
• Power: 5.0 V DC ±5%
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Operating humidity: 30–95% RH
• Reliability: MTBF > 50000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
• Intended applications: Military vehicles, naval vessel interiors, portable field communication systems, ground support equipment
