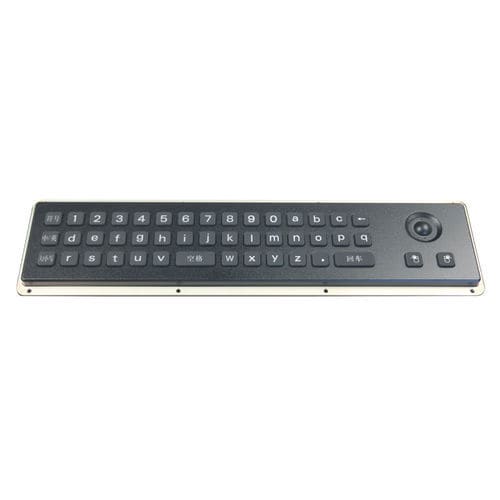

Panel-mount keyboard KH-RK43-286TB

carbon contactwith 2 mouse keys42-key

Product overview
The KH-RK43-286TB is a durable and space-efficient panel-mount keyboard. It combines a resilient 43 backlit-key silicone keypad with a highly compact mini trackball with two functional buttons (left and right), delivering essential data entry and precise cursor control in a single robust unit. Encased in a titanium black high-strength alloy panel, it offers a sealed, easy-to-clean solution for demanding applications where space is limited but functionality cannot be compromised.

Applications
Ideal for integration into industrial control panels, medical diagnostic devices, portable test equipment, vehicle consoles, and telecommunications hardware where a reliable, sealed, and compact input device with integrated pointing is required.

Features

• Ultra-compact 43-key sealed silicone keypad with backlight
• Integrated mini trackball with left and right mouse buttons
• IP65-rated waterproof and dustproof construction
• Titanium black, high-strength alloy front panel
• Reliable silicone-gold contact key technology
• Smooth, non-porous silicone surface for quick wiping and sterilization
• Optional interfaces (default/typical): USB; other interfaces available as options

Certifications & Origin :
CE / ROHS / FCC.
Place of Origin: China.
Brand: CNKHTECH.

Technical specifications

• Model: KH-RK43-286TB
• Dimensions: 286 x 72 mm
• Keys: 43 backlit keys + 2 functional keys
• Type: Silicone keys with metal panel
• Connector: USB
• Power supply: 5.0V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OSX, iOS, Android
• Temperature range: Storage -30°C to +75°C; Operating -25°C to +70°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
