Panel-mount keyboard KH-SK89-390-YG

carbon contactwith 3 mouse keys89-key

Overview

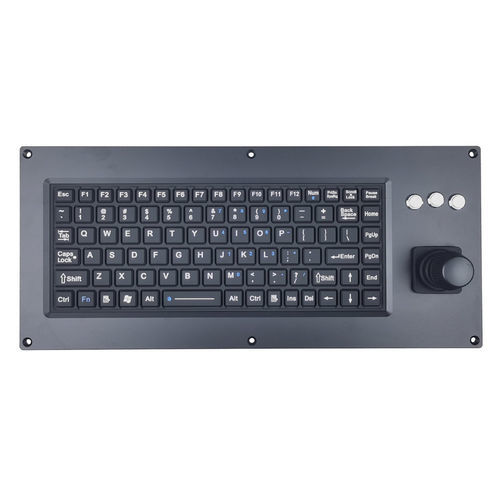

The KH-SK89-390-YG is an integrated sealed input console combining an 89-key sealed silicone keyboard with a precision joystick and dedicated tactile function buttons.

Designed for industrial and mission-critical environments, it delivers reliable input, easy cleaning and long service life while supporting flexible interface and layout customization.

Applications

• Mission-critical and harsh-environment control stations
• Military command and communication systems
• Industrial process control panels
• Emergency response and dispatch consoles
• Medical diagnostic and monitoring equipment
• Vehicle and vessel operator stations

Features

• Precision joystick for directional control with three dedicated tactile function buttons (Left, Middle, Right)
• 89-key sealed silicone keyboard with adjustable backlighting and FN function keys
• IP65-rated waterproof and chemical-resistant sealing for safe cleaning and operation in harsh conditions
• Rugged high-strength metal panel with titanium black finish
• Multiple interface options (USB standard; other interfaces available as options)
• Customizable key and functional layouts to meet application-specific requirements

Specifications

• Dimensions: 390 x 173 mm
• Keys: 89 backlit keys + 3 functional keys (including FN keys)
• Type: Sealed silicone keys on metal panel
• Connector: USB (other interfaces optional)
• Power supply: 5.0 V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OSX, iOS, Android
• Temperature range: Storage −30°C to +85°C; Operating −25°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Ingress protection: IP65 (waterproof, chemical-resistant)
• Warranty: 1-year limited warranty
