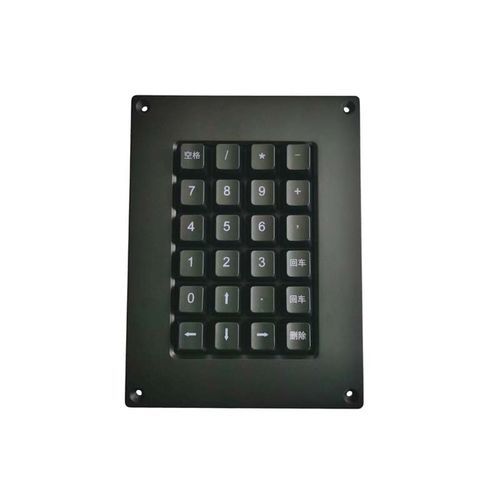

24-key keypad KH-KB24-129

benchtopwith mechanical keystitanium alloy

Overview
The KH-KB24-129 is an ultra-compact mechanical keypad for computer input and auxiliary control. It features a 4x6 layout (24 keys) housed in a titanium-black high-strength alloy front panel. Keys use mechanical switches (approx. 2.00 mm travel) with customizable backlighting and legends, suitable for integration as a standalone function pad or within complex control systems.

Applications
Ideal for industrial control panels, test & measurement equipment, broadcast consoles, simulation systems and specialized workstations requiring a compact, programmable auxiliary input device.

Features

• 4x6 key layout (24 programmable inputs)
• Titanium-black high-strength alloy front panel
• Customizable backlit keys with Kehang black mechanical switches; legend and function customization supported
• Mechanical key switches (~2.00 mm travel)
• USB connector standard; alternative interfaces available on request
• Fully customizable for specific integrations and applications
• Certifications: CE, RoHS, FCC
• Place of origin: China

Notes
Model number: KH-KB24-129. Supplied as an auxiliary/programming keypad and can be configured to meet specific system requirements.

Specifications

• Dimensions: 129 x 172 mm
• Keys: 24 black switch backlit keys
• Key switch: Mechanical (approx. 2.00 mm travel)
• Connector: USB
• Power supply: 5.0 V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Storage temperature: -45°C to +90°C; Operating: -40°C to +80°C
• Humidity: 30–95% RH (operating)
• MTBF: > 50 000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
