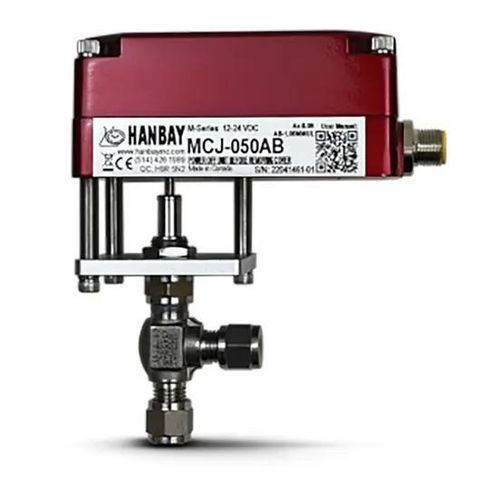

Volumetric dispensing valve MCJ-000XX-3-1325G2Ymanualfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- volumetric
- Other characteristics
- manual
- Applications
- for industrial applications
Description
Product
Valve details
Enclosures
Control Settings
Feedback Options
Other Features
Technical specifications
- Brand: Hanbay Inc.
- Model: MCJ-000XX-3-1325G2Y
- Range: Hanbay M Range
Valve details
- Valve: 1325G2Y
- Valve manufacturer: Hoke
- Valve type: Metering valve
- Valve material: Stainless Steel 316
- Valve connection: 1/8 in. Gyrolok
- Line size: 0.125
- CV: 0.024
- Pressure: 5000 PSI
Enclosures
- Standard Aluminum enclosure
- Stainless-Steel enclosure
- Class I Div I Groups B, C, D (CSA and IECEx rated)
- Stainless-Steel Class I Div I Groups B, C, D (CSA and IECEx rated)
- IP68 enclosures available
Control Settings
- Analog (4-20 mA or 1-5 V)
- Modbus (RS485)
- TTL input 0 V (pull to ground) variable positioning
Feedback Options
- None
- 4-20 mA feedback
Other Features
- Manual Override
- 110-240 VAC Power
- Battery Backup (min. 24 VDC power required)
- Isolated Input
- Prewired Turck M12 connector with 20 ft cable
Technical specifications
- Model designation: MCJ (MCJ series)
- Valve model: 1325G2Y
- Valve manufacturer: Hoke
- Valve type: Metering valve
- Valve material: Stainless Steel 316
- Connection: 1/8 in. Gyrolok
- Line size: 0.125
- Flow coefficient (CV): 0.024
- Maximum pressure rating: 5000 PSI
- Power supply: 110-240 VAC
- Battery backup: requires minimum 24 VDC
- Feedback: optional 4-20 mA
- Enclosure: Aluminium or Stainless-Steel; optional IP68; explosion-rated options available (Class I Div I Groups B, C, D)
- Interfaces: Modbus (RS485), TTL input, analog inputs
- Other: Manual override; prewired Turck M12 connector with 20 ft cable
