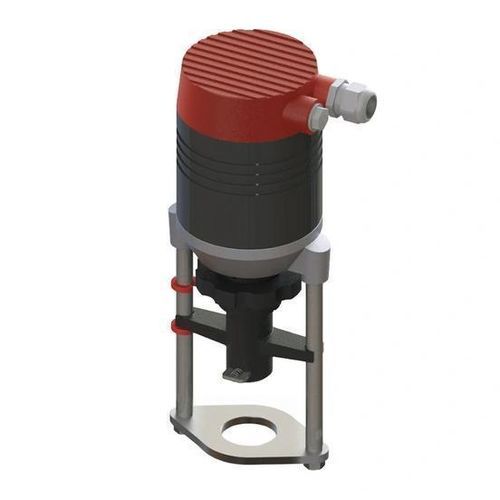

Electric actuator ELC 100linearIP54IP65
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Protection class
- IP54, IP65
- Other characteristics
- compact
- Stroke
Min.: 0 mm
(0 in)Max.: 20 mm
(0.787 in)- Force
Min.: 1 kN
Max.: 1 kN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0 m/s
(0 ft/s)
Description
Overview
The ELC 100 electric linear actuator provides a compact, industrial-grade solution delivering 1.0 kN of thrust with a 20 mm stroke. It offers selectable actuation speeds and a lightweight design suitable for a range of valve automation applications.
Range
ELC Range
Features
Available documentation (names)
Technical specifications
The ELC 100 electric linear actuator provides a compact, industrial-grade solution delivering 1.0 kN of thrust with a 20 mm stroke. It offers selectable actuation speeds and a lightweight design suitable for a range of valve automation applications.
Range
ELC Range
Features
- Thrust: 1.0 kN
- Stroke: Up to 20 mm
- Actuation speeds: 12, 9* (preset), 4 and 1.9 s/mm
- Weight: 2.5 kg
- Ingress protection: IP54, optional upgrade to IP65
Available documentation (names)
- PUB192-001 - Rotork ELC Range brochure - English (pdf)
- PUB192-003 - Rotork ELC 100-220 manual - English (pdf)
Technical specifications
- Actuator type: Electric linear actuator
- Thrust: 1.0 kN
- Stroke: Up to 20 mm
- Actuation speeds: 12, 9* (preset), 4, 1.9 s/mm
- Weight: 2.5 kg
- Ingress protection: IP54 (optional upgrade to IP65)
- Compact form factor suitable for industrial valve applications
Catalogs
No catalogs are available for this product.
See all of Rotork‘s catalogsOther Rotork products
