Electric valve actuator MCH-000XX-3-BF-03-121-15-M23
quarter-turn90°IP68

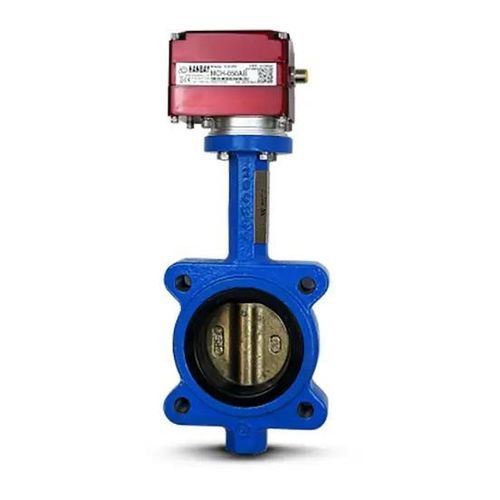

Electric valve actuator - MCH-000XX-3-BF-03-121-15-M23 - Rotork - quarter-turn / 90° / IP68
Electric valve actuator - MCH-000XX-3-BF-03-121-15-M23 - Rotork - quarter-turn / 90° / IP68
Add to favorites
Compare this product
Go to the Rotork website for more information

Characteristics

Type
electric
Movement
quarter-turn, 90°
Protection class
IP68
Other characteristics
modulating, aluminum, for butterfly valves, stainless steel, bus-capable, analog, with backup battery
Torque

20.68 Nm
(15.25 ft.lb)

Voltage

Min.: 110 V

Max.: 240 V

Rotation angle

90 °

Description

Product Overview
  • Brand: Hanbay Inc.
  • Range: Hanbay M Range
  • Model / Part: MCH-000XX-3-BF-03-121-15-M23
  • Application: Industrial flow control for water, HVAC and process lines


Valve Details
  • Valve: BF-03-121-15-M23
  • Valve manufacturer: Watts
  • Valve type: Butterfly valve
  • Valve material: Stainless Steel 316
  • Valve connection: 3 in. Lug
  • Line size: 3 in.
  • CV: 302
  • Max pressure: 300 PSI


Enclosures
  • Standard aluminum enclosure
  • Stainless-steel enclosure option
  • Class I Div I Groups B, C, D (CSA and IECEx rated)
  • Stainless-steel Class I Div I Groups B, C, D (CSA and IECEx rated)
  • IP68 enclosures available*


Control Settings
  • Analog control: 4-20 mA or 1-5 V
  • Modbus: RS485
  • TTL input: 0 V (pull to ground) for variable positioning


Feedback Options
  • None
  • 4-20 mA feedback


Other Features
  • Power: 110-240 VAC
  • Battery backup (requires minimum 24 VDC)
  • Isolated input
  • Prewired Turck M12 connector with 20 ft cable


Technical specifications
  • Product model: MCH-000XX-3-BF-03-121-15-M23
  • Brand: Hanbay Inc.
  • Valve model: BF-03-121-15-M23
  • Valve manufacturer: Watts
  • Type: Butterfly valve
  • Material: Stainless Steel 316
  • Connection: 3 in. Lug
  • Line size: 3 in.
  • CV: 302
  • Max pressure: 300 PSI
  • Power: 110-240 VAC
  • Battery backup: Requires min. 24 VDC
  • Feedback: Optional 4-20 mA
  • Control: 4-20 mA, 1-5 V, Modbus (RS485), TTL input
  • Connector: Prewired Turck M12 with 20 ft cable
  • Available enclosures: Aluminum, Stainless Steel, Class I Div I options, IP68 available
