Electrically-actuated valve MCH-000XX-3-20SM16071
threadedfemaleindustrial

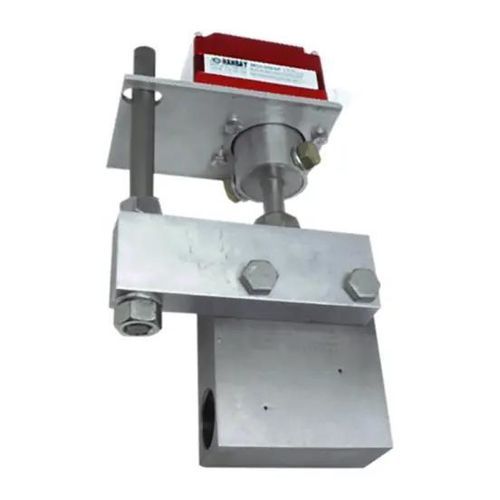

Electrically-actuated valve - MCH-000XX-3-20SM16071 - Rotork - threaded / female / industrial
Electrically-actuated valve - MCH-000XX-3-20SM16071 - Rotork - threaded / female / industrial
Add to favorites
Compare this product
Go to the Rotork website for more information

Characteristics

Operation
electrically-actuated
Body
threaded, female
Applications
industrial
Material
stainless steel
Other characteristics
high-pressure, actuated, with actuator
DN

Min.: 25.4 mm
(1 in)

Max.: 25.4 mm
(1 in)

Pressure

Min.: 1,379 bar
(20,000 psi)

Max.: 1,379 bar
(20,000 psi)

Description

Product overview
  • Valve: 20SM16071
  • Valve manufacturer: Parker
  • Valve type: High pressure valve
  • Valve material: Stainless Steel 316
  • Valve connection: 1 in. FNPT
  • Line size: 1
  • CV: 5.2
  • Pressure: 20000 PSI


Enclosures
  • Standard aluminum enclosure
  • Stainless-steel enclosure
  • Class I Div I Groups B, C, D (CSA and IECEx rated)
  • Stainless-steel Class I Div I Groups B, C, D (CSA and IECEx rated)
  • IP68 enclosures available


Control Settings
  • Analog (4-20 mA or 1-5 V)
  • Modbus (RS485)
  • TTL input 0 V (pull to ground) — variable positioning


Feedback Options
  • None
  • 4-20 mA feedback


Other Features
  • Manual override
  • 110-240 VAC power
  • Battery backup (minimum 24 VDC power required)
  • Isolated input
  • Prewired Turck M12 connector with 20 ft cable


Technical specifications
  • Brand: Hanbay Inc.
  • Range: Hanbay M Range
  • Model / code: MCH-000XX-3-20SM16071
  • Valve manufacturer: Parker
  • Valve: 20SM16071
  • Valve type: High pressure valve
  • Valve material: Stainless Steel 316
  • Valve connection: 1 in. FNPT
  • Line size: 1
  • CV: 5.2
  • Pressure rating: 20000 PSI
  • Enclosure options: Standard aluminum, stainless steel, Class I Div I rated variants, IP68 available
  • Control interfaces: 4-20 mA / 1-5 V analog, Modbus RS485, TTL input
  • Feedback: optional 4-20 mA
  • Power: 110-240 VAC (battery backup supported — min. 24 VDC)
  • Accessories: prewired Turck M12 connector with 20 ft cable
