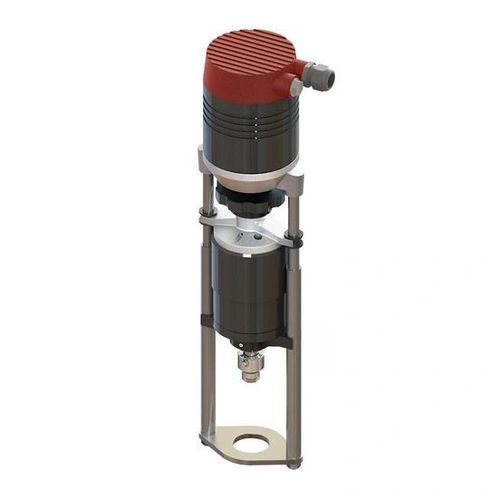

Electric actuator ELC 100SR

linearspring-returnIP54

Overview
The ELC 100SR electric linear actuator combines compact performance with a built-in spring-return safety function, ideal for applications where fail-safe positioning is critical. A 1.0 kN thrust and rapid fail-safe response ensure reliable operation in temperature-sensitive and safety-critical systems.

Range
ELC Range

Features

• Thrust: 1.0 kN
• Stroke: Up to 20 mm
• Actuation Speed: 6 and 4 s/mm (adjustable)
• Fail-Safe Time: ~0.1 s/mm
• Weight: 5 kg
• Protection Class: IP54

Technical specifications

• Thrust: 1.0 kN
• Stroke: Up to 20 mm
• Actuation speed: selectable 6 s/mm and 4 s/mm
• Fail-safe response time: approximately 0.1 s/mm
• Weight: 5 kg
• Ingress protection: IP54
