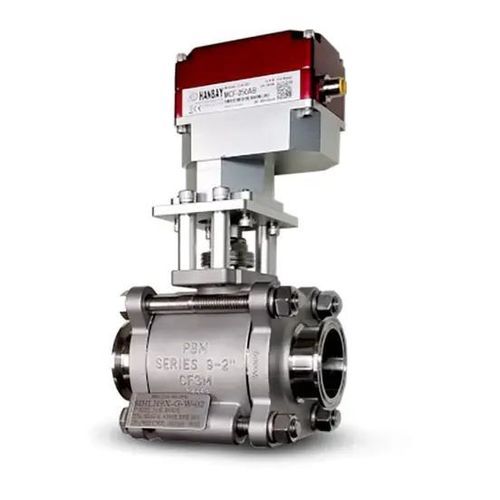

Electrically-actuated valve MCF-000XX-1-SIHLH9X-G-W-02IP68clampsanitary
Add to favorites
Compare this product
Characteristics
- Operation
- electrically-actuated
- Body
- IP68
- Applications
- clamp, sanitary
- Material
- stainless steel
- DN
Min.: 50.8 mm
(2 in)Max.: 50.8 mm
(2 in)- Pressure
Min.: 62.1 bar
(900 psi)Max.: 62.1 bar
(900 psi)
Description
Product Overview
Enclosures
Control Settings
Feedback Options
Other Features
Technical specifications
- Valve: SIHLH9X-G-W-02
- Valve manufacturer: PBM
- Valve type: Sanitary valve
- Valve material: Stainless Steel 316
- Valve connection: 2 in. Clamp
- Line size: 2
- CV: 10
- Pressure: 900 PSI
Enclosures
- Standard Aluminum enclosure
- Stainless-Steel enclosure
- Class I Div I Groups B,C,D (CSA and IECEx rated)
- Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
- IP68 enclosures available
Control Settings
- Analog (4-20 mA or 1-5 V)
- Modbus (RS485)
- TTL input 0 V (pull to ground) variable positioning
Feedback Options
- None
- 4-20 mA feedback
Other Features
- Manual Override
- 110-240 VAC Power
- Battery Backup (min. 24 VDC power required)
- Isolated Input
- Prewired Turck M12 connector with 20 ft cable
Technical specifications
- Model/Reference displayed: MCF-000XX-1-SIHLH9X-G-W-02
- Series: Hanbay M Range
- Brand: Hanbay Inc.
- Valve: SIHLH9X-G-W-02 (PBM)
- Material: Stainless Steel 316
- Connection: 2 in. Clamp
- Line size: 2
- CV: 10
- Maximum pressure: 900 PSI
- Enclosure options: Standard Aluminum, Stainless-Steel, Class I Div I versions, IP68 option
- Control: Analog 4-20 mA / 1-5 V; Modbus RS485; TTL input
- Feedback: None or 4-20 mA
- Power: 110-240 VAC; Battery backup requires min. 24 VDC
- Accessories: Prewired Turck M12 connector with 20 ft cable
