Needle valve MCH-000XX-3-N1358
electrically-actuatedIP68for industrial applications

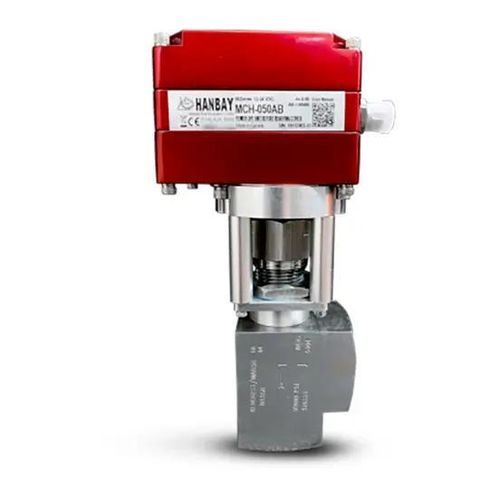

Needle valve - MCH-000XX-3-N1358 - Rotork - electrically-actuated / IP68 / for industrial applications
Needle valve - MCH-000XX-3-N1358 - Rotork - electrically-actuated / IP68 / for industrial applications
Add to favorites
Compare this product
Go to the Rotork website for more information

Characteristics

Type
needle
Operation
electrically-actuated
Body
IP68
Applications
for industrial applications
Material
stainless steel
Other characteristics
with actuator, with threaded connection, IECEx, for hazardous environments, with operating handle, digital, actuated
DN

Min.: 25.4 mm
(1 in)

Max.: 25.4 mm
(1 in)

Pressure

Min.: 689.5 bar
(10,000.1 psi)

Max.: 689.5 bar
(10,000.1 psi)

Description

Product overview
Actuated angle needle valve assembly integrating the Kerotest N1358 valve with the Hanbay M Range actuator (model MCH-000XX-3-N1358). Suited for 1 in. FNPT lines; valve body in Stainless Steel 316; flow coefficient Cv 6.2; maximum working pressure 10000 PSI. Multiple enclosure and control options enable application in industrial process environments.

Enclosures*
  • Standard Aluminum enclosure
  • Stainless-Steel enclosure
  • Class I Div I Groups B, C, D (CSA and IECEx rated)
  • Stainless-Steel Class I Div I Groups B, C, D (CSA and IECEx rated)
  • IP68 enclosures available*

Control Settings
  • Analog (4-20 mA or 1-5 V)
  • Modbus (RS485)
  • TTL input 0 V (pull to ground) variable positioning

Feedback Options
  • None
  • 4-20 mA feedback

Other Features
  • Manual override
  • 110-240 VAC power
  • Battery backup (min. 24 VDC power required)
  • Isolated input
  • Prewired Turck M12 connector with 20 ft cable

Technical specifications
  • Model / Reference: MCH-000XX-3-N1358
  • Series / Range: Hanbay M Range
  • Valve: N1358
  • Valve manufacturer: Kerotest
  • Valve type: Angle needle valve
  • Valve material: Stainless Steel 316
  • Valve connection: 1 in. FNPT
  • Line size: 1
  • Flow coefficient (Cv): 6.2
  • Maximum pressure: 10000 PSI
  • Enclosure options: Aluminum, Stainless Steel; Class I Div I Groups B,C,D certified options; IP68 available
  • Control interfaces: Analog 4-20 mA or 1-5 V, Modbus (RS485), TTL input
  • Feedback: optional 4-20 mA
  • Power: 110-240 VAC (battery backup supported with min. 24 VDC)
  • Connector: Prewired Turck M12 with 20 ft cable
  • Manual override: included
