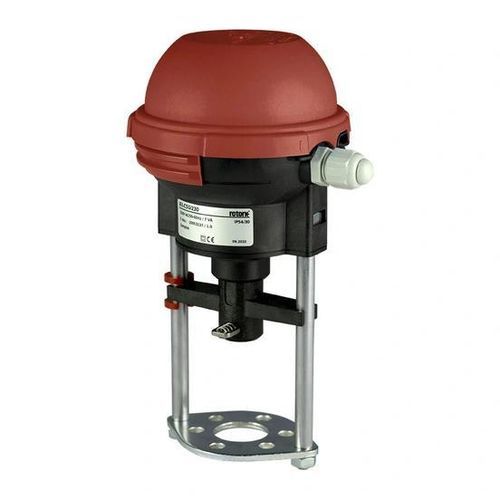

Electric actuator ELC 55linearIP54for materials handling
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Protection class
- IP54
- Applications
- for materials handling
- Other characteristics
- compact, precision, lightweight, small
- Stroke
Min.: 0 mm
(0 in)Max.: 20 mm
(0.787 in)- Force
0.6 kN
Description
Product overview
These entry-level models in the ELC range are designed for compact installations requiring reliable, precise linear motion for light-duty valve and small actuator tasks. The actuator provides a thrust of 0.6 kN with a stroke up to 20 mm. Its lightweight construction (1.5 kg) simplifies mounting and handling. Actuation speed is adjustable between 9 and 5 s/mm (presetting marked with *).
Features
Applications
Technical specifications
These entry-level models in the ELC range are designed for compact installations requiring reliable, precise linear motion for light-duty valve and small actuator tasks. The actuator provides a thrust of 0.6 kN with a stroke up to 20 mm. Its lightweight construction (1.5 kg) simplifies mounting and handling. Actuation speed is adjustable between 9 and 5 s/mm (presetting marked with *).
Features
- Thrust: 0.6 kN
- Stroke: Up to 20 mm
- Weight: 1.5 kg
- Actuation speed: Adjustable between 9 and 5 s/mm (presetting marked with *)
- Protection class: IP54 in automatic mode
- Protection class: IP30 in manual mode
Applications
- Compact installations requiring precise and reliable control
- Light-duty valve and small actuator operations
Technical specifications
- Model family: ELC Range (ELC 55 / ELC 55Y)
- Thrust: 0.6 kN
- Stroke: Up to 20 mm
- Weight: 1.5 kg
- Actuation speed: Adjustable between 9 and 5 s/mm (presetting marked with *)
- Protection class: IP54 (automatic mode)
- Protection class: IP30 (manual mode)
