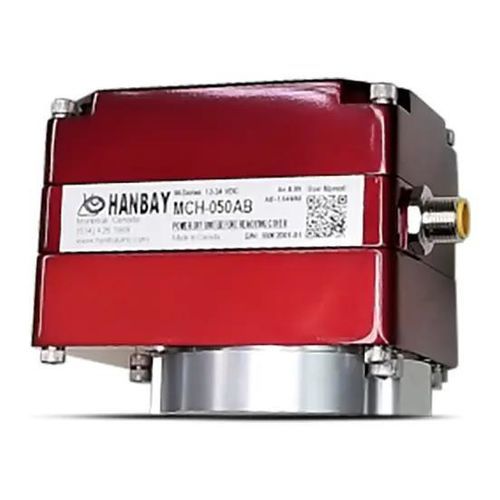

Electric valve actuator MCH-000XX-1-Including-mounting-kit90°single-phaseIP68
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- 90°
- Phase
- single-phase
- Protection class
- IP68
- Other characteristics
- aluminum, stainless steel, bus-capable, digital, analog, with backup battery
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 200,000,000 Nm
(147,512,429.86 ft.lb)- Voltage
Min.: 110 V
Max.: 240 V
Description
Product overview
Enclosures*
Control Settings
Feedback Options
Other Features
Technical specifications
- Actuator type: actuator only
- Line size: 0
- CV: 0
- Range: Hanbay M Range
Enclosures*
- Standard aluminum enclosure
- Stainless-steel enclosure
- Class I Div I Groups B, C, D (CSA and IECEx rated)
- Stainless-steel Class I Div I Groups B, C, D (CSA and IECEx rated)
- IP68 enclosures available*
Control Settings
- Analog (4-20 mA or 1-5 V)
- Modbus (RS485)
- TTL input 0 V (pull to ground) for variable positioning
Feedback Options
- None
- 4-20 mA feedback
Other Features
- 110-240 VAC power
- Battery Backup (min. 24 VDC power required)
- Isolated input
- Prewired Turck M12 connector with 20 ft cable
Technical specifications
- Brand: Hanbay Inc.
- Range: Hanbay M Range
- Product name: MCH-000XX-1-Including-mounting-kit
- Valve type: Actuator only
- Line size: 0
- CV: 0
- Enclosure options: Standard Aluminum; Stainless-Steel; CSA and IECEx rated Class I Div I Groups B, C, D; IP68 optional
- Control interfaces: Analog (4-20 mA / 1-5 V), Modbus (RS485), TTL input
- Feedback: None or 4-20 mA
- Power: 110-240 VAC; battery backup requires min 24 VDC
- Connector: Prewired Turck M12 with 20 ft cable
