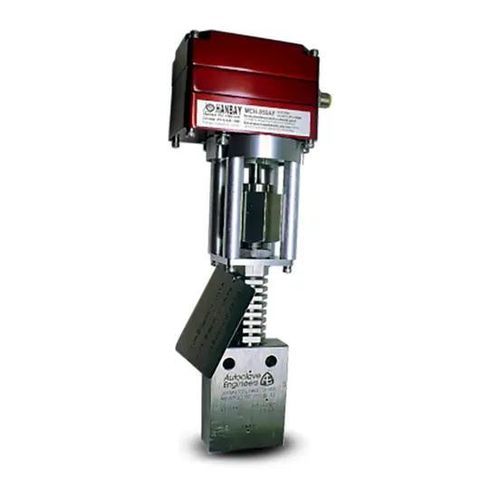

Electrically-actuated valve MCH-000XX-3-20SM9072-LT

electricfor controlthreaded

Product overview
Actuated high-pressure control valve assembled with Parker 20SM9072-LT valve. Valve body in Stainless Steel 316, connection 9/16 in. FNPT, line size 0.5625 in, Cv 1.3 and maximum pressure rating 20000 PSI. Unit integrates actuator, control electronics and prewired connector according to selected options.

Enclosures

• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B, C, D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B, C, D (CSA and IECEx rated)
• IP68 enclosures available*

Control Settings

• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground) variable positioning

Feedback Options

• None
• 4-20 mA feedback

Other Features

• 110-240 VAC power
• Battery backup (min. 24 VDC power required)
• Isolated input
• Prewired Turck M12 connector with 20 ft cable

Technical specifications

• Model / SKU shown on page: MCH-000XX-3-20SM9072-LT
• Series: Hanbay M Range
• Valve: 20SM9072-LT (Parker)
• Valve material: Stainless Steel 316
• Connection: 9/16 in. FNPT
• Line size: 0.5625 in
• Flow coefficient (Cv): 1.3
• Maximum pressure rating: 20000 PSI
• Enclosure options: Standard Aluminum, Stainless-Steel; hazardous area Class I Div I Groups B, C, D versions available; IP68 option available
• Control interfaces: Analog 4-20 mA or 1-5 V, Modbus RS485, TTL input
• Feedback: optional 4-20 mA
• Power: 110-240 VAC; supports battery backup (requires min. 24 VDC)
• Includes isolated input and prewired Turck M12 connector with 20 ft cable
