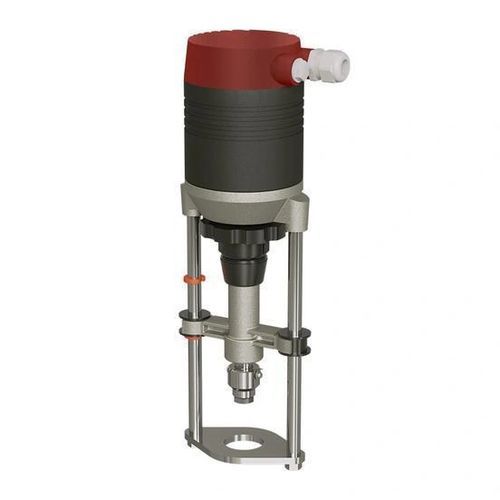

Electric actuator ELC 220linearIP54IP65
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Protection class
- IP54, IP65
- Applications
- industrial, control, for process automation
- Other characteristics
- compact, precision
- Stroke
Max.: 30 mm
(1.181 in)Min.: 0 mm
(0 in)- Force
2.2 kN
- Speed
0 m/s
(0 ft/s)
Description
Overview
The ELC 220 electric linear actuator delivers 2.2 kN thrust in a compact footprint, providing precise linear motion control for industrial and process valve applications. It is designed to combine higher thrust capacity with a short 30 mm stroke for installations with limited space.
Features
Applications
Suitable for precise valve positioning and linear actuation in industrial plants, process lines and equipment where higher linear thrust is required within a compact actuator envelope.
Technical specifications
The ELC 220 electric linear actuator delivers 2.2 kN thrust in a compact footprint, providing precise linear motion control for industrial and process valve applications. It is designed to combine higher thrust capacity with a short 30 mm stroke for installations with limited space.
Features
- Thrust: 2.2 kN
- Stroke: up to 30 mm
- Actuation speed: 3 s/mm
- Weight: 3.2 kg
- Protection class: IP54 standard, optional IP65 upgrade
Applications
Suitable for precise valve positioning and linear actuation in industrial plants, process lines and equipment where higher linear thrust is required within a compact actuator envelope.
Technical specifications
- Product family: ELC Range
- Model: ELC 220
- Actuator type: Electric linear actuator
- Thrust capacity: 2.2 kN
- Stroke: up to 30 mm
- Actuation speed: 3 s/mm
- Weight: 3.2 kg
- Protection class: IP54 (standard), optional IP65 upgrade
- Typical use: Industrial and process valve control
