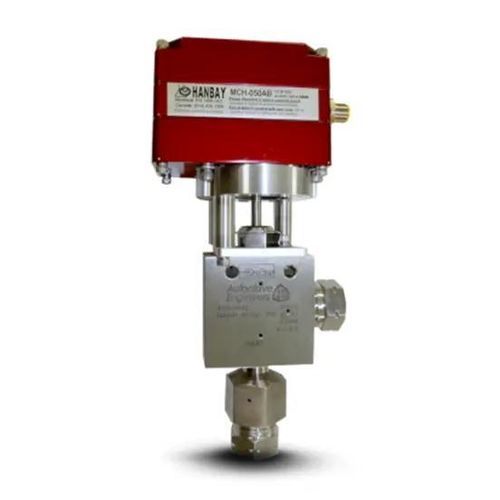

Needle valve MCH-000XX-3-40VM9882electrically-actuatedactuator controlright-angle
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- electrically-actuated
- Function
- actuator control
- Body
- right-angle
- Material
- stainless steel
- Other characteristics
- with actuator, actuated
- DN
Min.: 14.287 mm
(0.562 in)Max.: 14.287 mm
(0.562 in)- Pressure
Min.: 2,757.9 bar
(40,000 psi)Max.: 2,757.9 bar
(40,000 psi)
Description
Product overview
Enclosures*
Control settings
Feedback options
Other features
Technical specifications
- Valve: 40VM9882
- Valve manufacturer: Parker
- Valve type: Angle needle valve
- Valve material: Stainless Steel 316
- Valve connection: 9/16 in. F562C40
- Line size: 0.5625 in
- Cv: 0.28
- Pressure: 40000 PSI
Enclosures*
- Standard aluminum enclosure
- Stainless-steel enclosure
- Class I Div I Groups B, C, D (CSA and IECEx rated)
- Stainless-steel Class I Div I Groups B, C, D (CSA and IECEx rated)
- IP68 enclosures available*
Control settings
- Analog (4-20 mA or 1-5 V)
- Modbus (RS485)
- TTL input 0 V (pull to ground) variable positioning
Feedback options
- None
- 4-20 mA feedback
Other features
- 110-240 VAC power
- Battery backup (min. 24 VDC power required)
- Isolated input
- Prewired Turck M12 connector with 20 ft cable
Technical specifications
- Model / Reference on page: MCH-000XX-3-40VM9882
- Series: Hanbay M Range
- Valve manufacturer: Parker
- Valve type: Angle needle valve
- Valve material: Stainless Steel 316
- Valve connection: 9/16 in. F562C40
- Line size: 0.5625 in
- Flow coefficient (Cv): 0.28
- Maximum pressure rating: 40000 PSI
- Power supply: 110-240 VAC
- Battery backup: requires min. 24 VDC
- Control interfaces: 4-20 mA, 1-5 V, Modbus (RS485), TTL
- Feedback: optional 4-20 mA
- Connector: Prewired Turck M12 with 20 ft cable
- Available enclosures: aluminium, stainless steel, Class I Div I (CSA & IECEx), IP68 options
Catalogs
No catalogs are available for this product.
See all of Rotork‘s catalogsOther Rotork products
Electric Industrial Actuators
