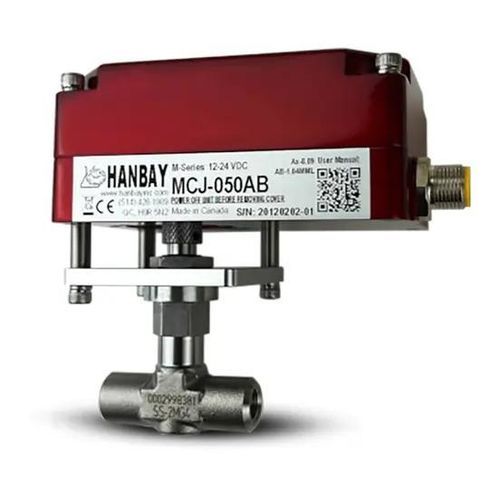

Electrically-actuated valve MCJ-000XX-3-SS-2MG4

meteringthreadedfemale

Overview
Valve: SS-2MG4
Valve manufacturer: Swagelok
Valve type: Metering valve
Valve material: Stainless-Steel
Valve connection: 1/8 in. FNPT
Line size: 0.125
CV: 0.03
Pressure: 1000 PSI

Enclosures*

• Standard Aluminum enclosure
• Stainless‑Steel enclosure
• Class I Div I Groups B, C, D (CSA and IECEx rated)
• Stainless‑Steel Class I Div I Groups B, C, D (CSA and IECEx rated)
• IP68 enclosures available*

Control Settings

• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground) - variable positioning

Feedback Options

• None
• 4-20 mA feedback

Other Features

• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Isolated Input
• Prewired Turck M12 connector with 20 ft cable

Technical specifications

• Model / Reference: MCJ-000XX-3-SS-2MG4
• Series: Hanbay M Range
• Valve: SS-2MG4 (Swagelok metering valve)
• Material: Stainless‑Steel (valve)
• Connection: 1/8 in. FNPT
• Line size: 0.125
• CV: 0.03
• Maximum pressure: 1000 PSI
• Available enclosures: Standard aluminium, stainless‑steel, IP68 options, Class I Div I rated options
• Control interfaces: 4-20 mA, 1-5 V, Modbus RS485, TTL input
• Feedback: None or 4-20 mA
• Power: 110-240 VAC (battery backup supported with min. 24 VDC)
• Additional: Manual override, isolated input, prewired M12 connector with 20 ft cable
