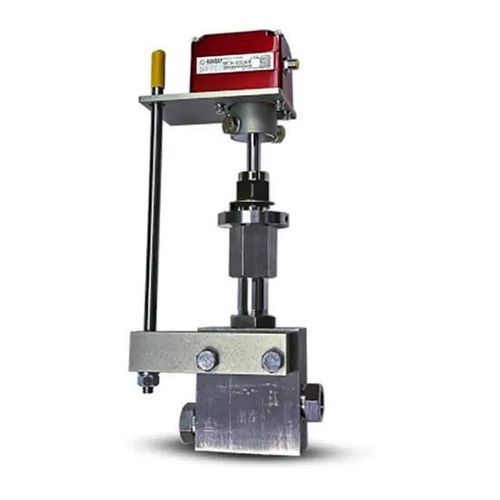

Electrically-actuated valve MCH-000XX-3-20-11LF16-HT-REG

electricregulatingflow control

Product overview
Actuated high-pressure valve assembly MCH-000XX-3-20-11LF16-HT-REG for industrial fluid control. Valve: 20-11LF16-HT-REG (manufacturer: HIP). Body material: Stainless Steel 316. Connection: 1 in. coned-and-threaded. Line size: 1 in. Flow coefficient (CV): 3.86. Maximum operating pressure: 20,000 PSI. Suitable for high-pressure applications requiring precise remote control and hazardous-area options.

Enclosures

• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B, C, D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B, C, D (CSA and IECEx rated)
• IP68 enclosures available

Control Settings

• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground) variable positioning

Feedback Options

• None
• 4-20 mA feedback

Other Features

• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Isolated Input
• Prewired Turck M12 connector with 20 ft (6.1 m) cable

Technical specifications

• Series: Hanbay M Range
• Brand: Hanbay Inc.
• Model identifier on page: MCH-000XX-3-20-11LF16-HT-REG
• Valve: 20-11LF16-HT-REG
• Manufacturer: HIP
• Type: High pressure valve
• Material: Stainless Steel 316
• Connection: 1 in. coned-and-threaded
• Line size: 1 in.
• Flow coefficient (CV): 3.86
• Maximum pressure: 20,000 PSI
• Enclosure options: Aluminum, Stainless-Steel, IP68 available
• Hazardous area ratings: Class I Div I Groups B, C, D (CSA and IECEx rated) options
• Control interfaces: 4-20 mA / 1-5 V analog, Modbus (RS485), TTL input
• Feedback: optional 4-20 mA
• Power: 110-240 VAC; battery backup requires minimum 24 VDC
• Manual override provided
• Prewired connector: Turck M12 with 20 ft (6.1 m) cable
