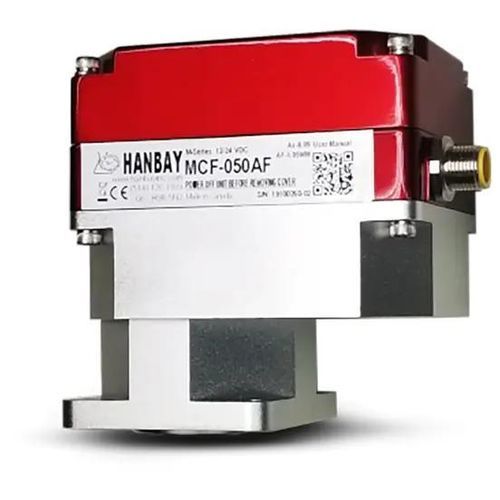

Electric valve actuator MCF-000XX-1

manualquarter-turnIP68

Product overviewElectric actuator (actuator-only unit) for valve mounting. Model MCF-000XX-1 by Hanbay Inc., supplied including high-temperature mounting kit and prewired Turck M12 cable.EnclosuresStandard aluminium enclosureStainless-steel enclosureHazardous-area rating: Class I Div I Groups B, C, D (CSA and IECEx)Stainless-steel hazardous version (Class I Div I Groups B, C, D)IP68 enclosures availableControl SettingsAnalog control (4–20 mA or 1–5 V)Modbus (RS485)TTL input (0 V reference, pull to ground) for variable positioningFeedback OptionsNone4–20 mA position feedbackOther featuresManual override110–240 VAC mains powerBattery backup support (minimum 24 VDC required)Isolated inputPrewired Turck M12 connector with 20 ft cableHigh-temperature mounting kit includedTechnical specificationsBrand: Hanbay Inc.Product range: Hanbay M RangeModel designation: MCF (MCF series)Valve type: Actuator onlyLine size: 0CV: 0Enclosure options: Aluminium, Stainless Steel, hazardous-area ratings (Class I Div I Groups B, C, D), IP68 availableControl interfaces: 4–20 mA, 1–5 V, Modbus RS485, TTL inputFeedback: Optional 4–20 mAPower: 110–240 VAC; supports battery backup (min. 24 VDC)Connector: Prewired Turck M12 with 20 ft cableAdditional: Manual override, isolated input, high-temperature mounting kit
