Manual valve MCH-000XX-3-20-11LF16-HT-REG
electrically-operatedpressure-controlstainless steel

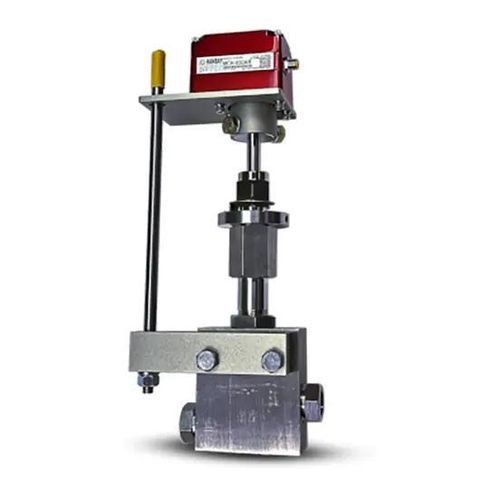

Manual valve - MCH-000XX-3-20-11LF16-HT-REG - Rotork - electrically-operated / pressure-control / stainless steel
Manual valve - MCH-000XX-3-20-11LF16-HT-REG - Rotork - electrically-operated / pressure-control / stainless steel
Add to favorites
Compare this product
Go to the Rotork website for more information

Characteristics

Operation
manual, electrically-operated
Function
pressure-control
Material
stainless steel
Other characteristics
with actuator, high-pressure, with threaded connection, IECEx
DN

Min.: 25.4 mm
(1 in)

Max.: 25.4 mm
(1 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 1,379 bar
(20,000 psi)

Description

Product overview
  • Actuated high-pressure control valve assembly, model MCH-000XX-3-20-11LF16-HT-REG (Hanbay M Range)
  • Valve: 20-11LF16-HT-REG manufactured by HIP
  • Valve type: High-pressure valve, material Stainless Steel 316
  • Connection: 1 in. coned-and-threaded
  • Line size: 1 in.; Flow coefficient (Cv): 3.86
  • Maximum pressure rating: 20,000 PSI


Enclosures*
  • Standard aluminum enclosure
  • Stainless-steel enclosure
  • Class I Div I Groups B, C, D (CSA and IECEx rated)
  • Stainless-steel Class I Div I Groups B, C, D (CSA and IECEx rated)
  • IP68 enclosures available*


Control Settings
  • Analog inputs: 4-20 mA or 1-5 V
  • Digital fieldbus: Modbus (RS485)
  • TTL input: 0 V (pull to ground) for variable positioning


Feedback Options
  • None
  • 4-20 mA position feedback


Other Features
  • Manual override
  • 110-240 VAC power supply
  • Battery backup option (minimum 24 VDC required)
  • Isolated input
  • Prewired Turck M12 connector with 20 ft cable


Technical specifications
  • Model/reference: MCH-000XX-3-20-11LF16-HT-REG
  • Series: Hanbay M Range
  • Valve manufacturer: HIP
  • Valve material: Stainless Steel 316
  • Connection: 1 in. coned-and-threaded
  • Line size: 1 in.
  • Flow coefficient (Cv): 3.86
  • Maximum pressure rating: 20,000 PSI
  • Enclosure options: Aluminum, Stainless Steel, IP68 available
  • Hazardous area ratings: Class I Div I Groups B, C, D (CSA and IECEx where specified)
  • Control interfaces: 4-20 mA, 1-5 V, Modbus RS485, TTL input
  • Power: 110-240 VAC (battery backup option requires min. 24 VDC)
  • Connectivity: Prewired Turck M12 connector with 20 ft cable
