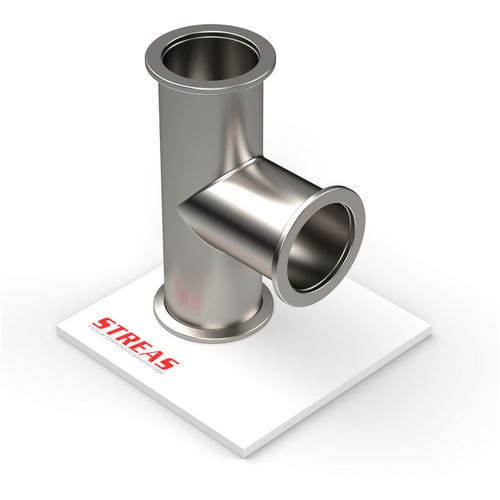

Vacuum fitting 3T10KF-4

flangeT-shaped304 stainless steel

Product description

KF three-way tee with KF flanges, available in AISI 304. Designed for system connections using KF flanges and supplied with a micro-shot-peened finish.

Available items

• Items available:
  • Code: 3T10KF-4 — DN 10 — Material: AISI 304 — Finish: Micro-shot-peened — Availability: Medium availability — Dimensions: A 60 mm (2.362"), B 30 mm (1.181"), C 30 mm (1.181"); D/E/F not applicable.
  • Code: 3T16KF-4 — DN 16 — Material: AISI 304 — Finish: Micro-shot-peened — Availability: High availability — Dimensions: A 80 mm (3.150"), B 40 mm (1.575"), C 30 mm (1.181"); D/E/F not applicable.
  • Code: 3T25KF-4 — DN 25 — Material: AISI 304 — Finish: Micro-shot-peened — Availability: High availability — Dimensions: A 100 mm (3.937"), B 50 mm (1.969"), C 40 mm (1.575"); D/E/F not applicable.
  • Code: 3T40KF-4 — DN 40 — Material: AISI 304 — Finish: Micro-shot-peened — Availability: High availability — Dimensions: A 130 mm (5.118"), B 65 mm (2.559"), C 55 mm (2.165"); D/E/F not applicable.
  • Code: 3T50KF-4 — DN 50 — Material: AISI 304 — Finish: Micro-shot-peened — Availability: High availability — Dimensions: A 140 mm (5.512"), B 70 mm (2.756"), C 75 mm (2.953"); D/E/F not applicable.

Characteristics / technical specifications

• Line: KF
• Line type: KF
• Product type: Connection fittings (three-way tees)
• Material: AISI 304
• Finish: Micro-shot-peened
• Models/codes: 3T10KF-4, 3T16KF-4, 3T25KF-4, 3T40KF-4, 3T50KF-4
• Main sizes available: DN 10, 16, 25, 40, 50 (see item list for A/B/C in mm and inches)
• Technical documentation available: commercial product sheet and technical datasheet (PDF)

Documentation & ordering

• Documentation: product sheet and technical datasheet (PDF) available on request.
• Contact sales for lead times, bulk orders and customised requests.
