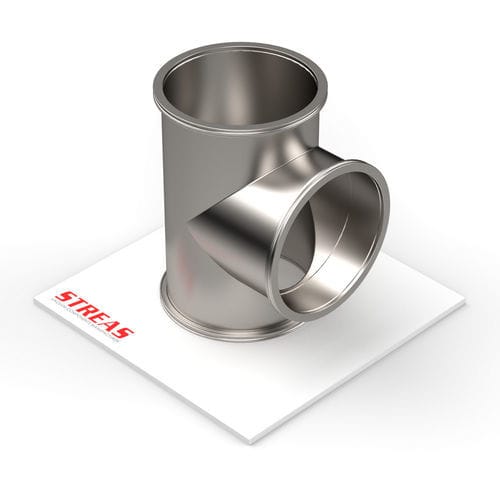

Flange fitting 3T63ISOK-4

T-shapedISO304 stainless steel

Three-way connection fitting equipped with ISO-K flanges.

Available items:

• 3T63ISOK-4 — DN 63 — Availability: High — A: 176 mm (6.929 inch) — B: 88 mm (3.465 inch) — C: 95 mm (3.740 inch)
• 3T80ISOK-4 — DN 80 — Availability: High — A: 216 mm (8.504 inch) — B: 108 mm (4.252 inch) — C: 110 mm (4.331 inch)
• 3T100ISOK-4 — DN 100 — Availability: High — A: 216 mm (8.504 inch) — B: 108 mm (4.252 inch) — C: 130 mm (5.118 inch)
• 3T160ISOK-4 — DN 160 — Availability: High — A: 276 mm (10.866 inch) — B: 138 mm (5.433 inch) — C: 180 mm (7.087 inch)
• 3T200ISOK-4 — DN 200 — Availability: High — A: 356 mm (14.016 inch) — B: 178 mm (7.008 inch) — C: 240 mm (9.449 inch)
• 3T250ISOK-4 — DN 250 — Availability: High — A: 416 mm (16.378 inch) — B: 208 mm (8.189 inch) — C: 290 mm (11.417 inch)
• 3T320ISOK-4 — DN 320 — Availability: Low — A: 600 mm (23.622 inch) — B: 300 mm (11.811 inch) — C: 370 mm (14.567 inch)
• 3T400ISOK-4 — DN 400 — Availability: Low — A: 600 mm (23.622 inch) — B: 300 mm (11.811 inch) — C: 450 mm (17.717 inch)

Technical specifications

• Line: ISO-K
• Line type: ISO
• Product type: Connection fittings (three-way tee with ISO-K flanges)
• Available materials: AISI 304
• Finish: Micropolished
