Vacuum fitting D series
flange304 stainless steelflange

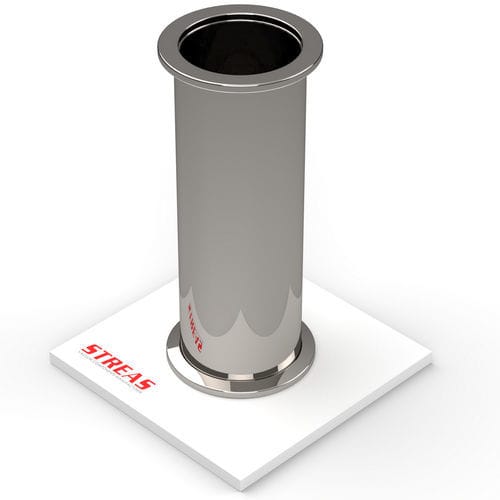

Vacuum fitting - D series - Streas srl - flange / 304 stainless steel / flange
Vacuum fitting - D series - Streas srl - flange / 304 stainless steel / flange
Vacuum fitting - D series - Streas srl - flange / 304 stainless steel / flange - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
for vacuum
Attachment
flange
Material
304 stainless steel
Other characteristics
flange
Diameter

10 mm, 16 mm, 25 mm, 40 mm, 50 mm
(0.394 in, 0.63 in, 0.984 in, 1.575 in, 1.969 in)

Description

Description
  • Straight connector for KF flange connections. Suitable for piping and process systems requiring KF line fittings. Available nominal sizes: DN 10, 16, 25, 40, 50. Main material: AISI 304.


Available items
  • D10KF-60-4
    • Material: AISI 304
    • Finish: Micropeened
    • DN: 10
    • A: 30 mm / 1.181 inch
    • B: 60 mm / 2.362 inch
    • C: -
    • D: -
    • E: -
    • F: -
  • D16KF-80-4
    • Material: AISI 304
    • Finish: Micropeened
    • DN: 16
    • A: 30 mm / 1.181 inch
    • B: 80 mm / 3.15 inch
    • C: -
    • D: -
    • E: -
    • F: -
  • D25KF-100-4
    • Material: AISI 304
    • Finish: Mechanical polish outside, raw inside
    • DN: 25
    • A: 40 mm / 1.575 inch
    • B: 100 mm / 3.937 inch
    • C: -
    • D: -
    • E: -
    • F: -
  • D40KF-130-4
    • Material: AISI 304
    • Finish: Mechanical polish outside, raw inside
    • DN: 40
    • A: 55 mm / 2.165 inch
    • B: 130 mm / 5.118 inch
    • C: -
    • D: -
    • E: -
    • F: -
  • D50KF-140-4
    • Material: AISI 304
    • Finish: Mechanical polish outside, raw inside
    • DN: 50
    • A: 75 mm / 2.953 inch
    • B: 140 mm / 5.512 inch
    • C: -
    • D: -
    • E: -
    • F: -


Technical characteristics / specifications
  • Commercial name: Dritto KF
  • Main material: AISI 304
  • Available finishes: Mechanical polish (external) & raw (internal), Micropeened
  • Product type: Connection fittings
  • Line: KF
  • Available sizes (DN): 10, 16, 25, 40, 50
  • Documentation: commercial data sheet and technical sheet (PDF)


Finishes and materials
  • Main material AISI 304. Choice of external mechanical polish with raw internal surface or micropeened finish depending on process requirements.


Documentation
  • Commercial product sheet and technical specification sheet available in PDF on request.
