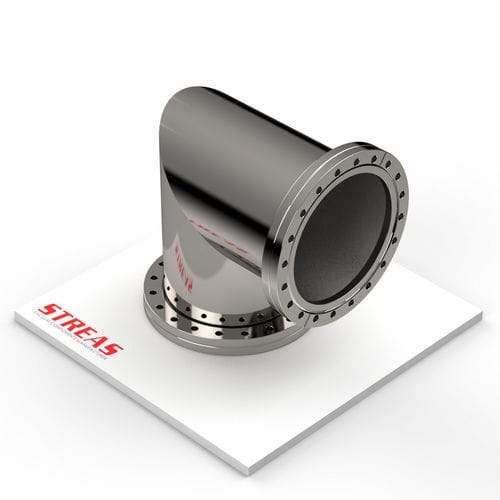

Stainless steel pipe elbow 90G150CF-4
90°

Stainless steel pipe elbow - 90G150CF-4 - Streas srl - 90°
Stainless steel pipe elbow - 90G150CF-4 - Streas srl - 90°
Stainless steel pipe elbow - 90G150CF-4 - Streas srl - 90° - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Material
stainless steel
Other characteristics
90°
DN

150 mm, 200 mm
(6 in, 8 in)

Description

Description

The 90° CF elbow is a 90-degree connection fitting with CF flanges, engineered for use in CF vacuum lines. It is available in multiple nominal diameters and produced in materials suitable for vacuum applications, with an external machined polish and internal as-formed finish.

Available items:

  • Article code: 90G150CF-4
    • Material: AISI 304
    • Finish: External machined polish / Internal as-formed
    • DN: 150
    • A: 202 mm / 7.953 inch
    • B: 167 mm / 6.575 inch
    • C: -
    • D: -
    • E: -
    • F: -
  • Article code: 90G200CF-4
    • Material: AISI 304
    • Finish: External machined polish / Internal as-formed
    • DN: 200
    • A: 253 mm / 9.961 inch
    • B: 210 mm / 8.268 inch
    • C: -
    • D: -
    • E: -
    • F: -


Features / technical specifications:

  • Line: CF
  • Line type: CF
  • Product type: Connection fittings
  • Material available: AISI 304
  • Standard finish: External machined polish and internal as-formed
  • Article configurations: variants by DN (e.g. DN150, DN200) with codes 90G150CF-4, 90G200CF-4
  • Availability: stock indications (e.g. 'Medium availability' for some items)
  • Technical documentation available: commercial datasheet and technical datasheet in PDF
