Pipe female-to-female reducer CF-4 series
flangereducing304 stainless steel

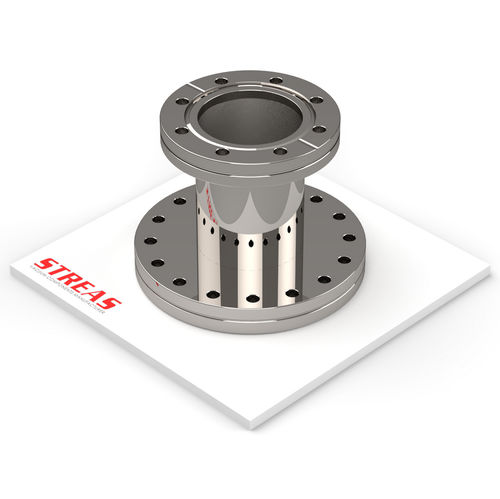

Pipe female-to-female reducer - CF-4 series - Streas srl - flange / reducing / 304 stainless steel
Pipe female-to-female reducer - CF-4 series - Streas srl - flange / reducing / 304 stainless steel
Pipe female-to-female reducer - CF-4 series - Streas srl - flange / reducing / 304 stainless steel - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
for pipes, flange, reducing
Material
304 stainless steel
Other characteristics
straight, machined
Diameter

Max.: 200 mm
(7.874 in)

Min.: 16 mm
(0.63 in)

Length

Max.: 130 mm
(5.12 in)

Min.: 60 mm
(2.36 in)

Description

Product overview:

CF straight reducer designed to connect components with different nominal diameters (DN) on CF lines. Supplied in AISI 304 with external mechanical polish and internal as-machined finish.

Main information:
  • Line: CF
  • Line type: CF
  • Product type: Connection fittings
  • Material: AISI 304
  • Finish: External mechanical polish, internal raw

Available items:
  • R3816CF-4
    • Material: AISI 304
    • Finish: External mechanical polish, internal raw
    • DN: 38/16
    • A: 70 mm (2.756 in)
    • B: 34 mm (1.339 in)
    • C: 60 mm (2.362 in)
    • Availability: High
  • R3825CF-4
    • Material: AISI 304
    • Finish: External mechanical polish, internal raw
    • DN: 38/25
    • A: 70 mm (2.756 in)
    • B: 54 mm (2.126 in)
    • C: 60 mm (2.362 in)
    • Availability: Low
  • R6338CF-4
    • Material: AISI 304
    • Finish: External mechanical polish, internal raw
    • DN: 63/38
    • A: 114 mm (4.488 in)
    • B: 70 mm (2.756 in)
    • C: 95 mm (3.740 in)
    • Availability: High
  • R10038CF-4
    • Material: AISI 304
    • Finish: External mechanical polish, internal raw
    • DN: 100/38
    • A: 152 mm (5.984 in)
    • B: 70 mm (2.756 in)
    • C: 110 mm (4.331 in)
    • Availability: High
  • R10063CF-4
    • Material: AISI 304
    • Finish: External mechanical polish, internal raw
    • DN: 100/63
    • A: 152 mm (5.984 in)
    • B: 114 mm (4.488 in)
    • C: 115 mm (4.528 in)
    • Availability: High
  • R150100CF-4
    • Material: AISI 304
    • Finish: External mechanical polish, internal raw
    • DN: 150/100
    • A: 202 mm (7.953 in)
    • B: 152 mm (5.984 in)
    • C: 120 mm (4.724 in)
    • Availability: Medium
  • R200150CF-4
    • Material: AISI 304
    • Finish: External mechanical polish, internal raw
    • DN: 200/150
    • A: 253 mm (9.961 in)
    • B: 202 mm (7.953 in)
    • C: 130 mm (5.118 in)
    • Availability: Medium

Features / technical specifications:
  • Compatibility: CF flanges
  • Standard material: AISI 304
  • Finish: External mechanical polish, internal as-machined
  • Product range: multiple codes with variable DN (e.g. 38/16, 38/25, 63/38, 100/38, 100/63, 150/100, 200/150)
  • Dimensions A, B, C listed per code (see available items)
  • Intended use: connecting components with different nominal diameters on CF lines
