Vacuum fitting 3T series

flangeT-shaped304 stainless steel

Overview

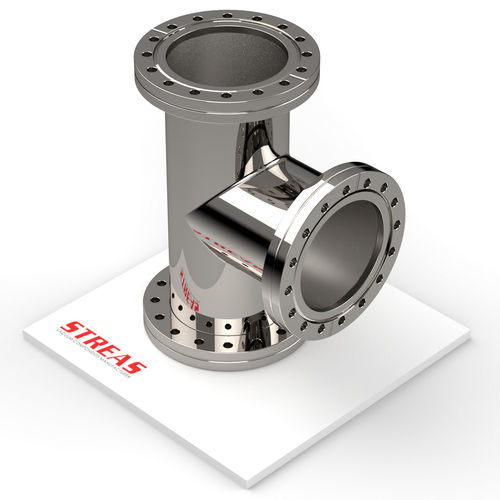

CF three-way tee with CF flanges designed for connections in vacuum systems. Supplied in AISI 304 with mechanically polished external finish and as-welded internal finish.

Key features

• Line: CF
• Line type: CF flange
• Product type: Connection fittings
• Finish: External mechanically polished, internal as-welded

Available items

• 3T16CF-4 — Material: AISI 304; Finish: External mechanically polished, internal as-welded; DN: 16; A: 76 mm (2.992 in); B: 38 mm (1.496 in); C: 34 mm (1.339 in)
• 3T38CF-4 — Material: AISI 304; Finish: External mechanically polished, internal as-welded; DN: 38; A: 126 mm (4.961 in); B: 63 mm (2.48 in); C: 70 mm (2.756 in)
• 3T63CF-4 — Material: AISI 304; Finish: External mechanically polished, internal as-welded; DN: 63; A: 210 mm (8.268 in); B: 105 mm (4.134 in); C: 113 mm (4.449 in)
• 3T100CF-4 — Material: AISI 304; Finish: External mechanically polished, internal as-welded; DN: 100; A: 270 mm (10.63 in); B: 135 mm (5.315 in); C: 152 mm (5.984 in)
• 3T150CF-4 — Material: AISI 304; Finish: External mechanically polished, internal as-welded; DN: 150; A: 334 mm (13.15 in); B: 167 mm (6.575 in); C: 202 mm (7.953 in)
• 3T200CF-4 — Material: AISI 304; Finish: External mechanically polished, internal as-welded; DN: 200; A: 420 mm (16.535 in); B: 210 mm (8.268 in); C: 253 mm (9.961 in)

Technical specifications

• Configuration: Three-way tee with CF flanges
• Available material: AISI 304
• Standard finish: External mechanically polished, internal as-welded
• Available DN variants: 16, 38, 63, 100, 150, 200
• Technical documentation available in PDF (commercial data sheet and technical sheet)
