Stainless steel pipe elbow 45C series

45°

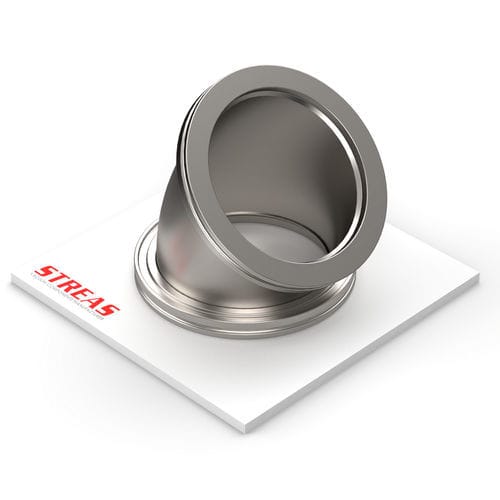

45° ISO-K elbow with ISO-K flanges for connections in ISO-K lines.

Articles available:

• 45C63ISOK-4 — DN 63; Availability: High; A: 95 mm (3.74 in); B: 80 mm (3.15 in)
• 45C80ISOK-4 — DN 80; Availability: High; A: 110 mm (4.331 in); B: 100 mm (3.937 in)
• 45C100ISOK-4 — DN 100; Availability: High; A: 130 mm (5.118 in); B: 100 mm (3.937 in)
• 45C160ISOK-4 — DN 160; Availability: High; A: 180 mm (7.087 in); B: 227 mm (8.937 in)
• 45C200ISOK-4 — DN 200; Availability: Medium; A: 240 mm (9.449 in); B: 315 mm (12.402 in)
• 45C250ISOK-4 — DN 250; Availability: Medium; A: 290 mm (11.417 in); B: 400 mm (15.748 in)

Features / technical specifications:

• Line: ISO-K
• Line type: ISO
• Product type: Connection fittings (45° elbow)
• Material: AISI 304
• Finish: Shot-blasted
• Available sizes (DN): 63, 80, 100, 160, 200, 250
• Technical drawings and 2D/3D images available on the product page
• Documentation available: commercial datasheet (PDF) and technical datasheet (PDF)
