Vacuum fitting 4CR2510KF-4
flangecross304 stainless steel

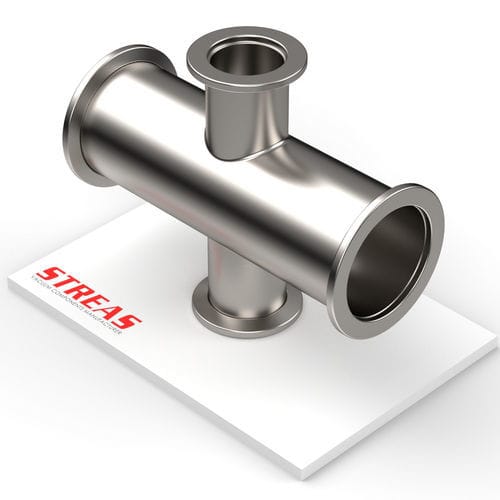

Vacuum fitting - 4CR2510KF-4 - Streas srl - flange / cross / 304 stainless steel
Vacuum fitting - 4CR2510KF-4 - Streas srl - flange / cross / 304 stainless steel
Vacuum fitting - 4CR2510KF-4 - Streas srl - flange / cross / 304 stainless steel - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
for vacuum
Attachment
flange
Configuration
cross
Material
304 stainless steel
Other characteristics
reduction, multi-port
Diameter

Min.: 10 mm
(0.394 in)

Max.: 50 mm
(1.969 in)

Description

Four-way KF flange reducer designed to connect components with different nominal diameters (DN). Available in AISI 304 with a micro-shot blasted finish.

Key features
  • Line: KF
  • Line type: KF
  • Product type: Connection fittings
  • Finish: Micro-shot blasted

Available items
  • 4CR2510KF-4 — Material: AISI 304; Finish: Micro-shot blasted; DN: 25/10; Dimensions (mm): A = 100, B = 50, C = 80, D = 40, E = 30, F = 40.
  • 4CR2516KF-4 — Material: AISI 304; Finish: Micro-shot blasted; DN: 25/16; Dimensions (mm): A = 100, B = 50, C = 80, D = 40, E = 30, F = 40.
  • 4CR4010KF-4 — Material: AISI 304; Finish: Micro-shot blasted; DN: 40/10; Dimensions (mm): A = 130, B = 65, C = 80, D = 40, E = 30, F = 55.
  • 4CR4016KF-4 — Material: AISI 304; Finish: Micro-shot blasted; DN: 40/16; Dimensions (mm): A = 130, B = 65, C = 80, D = 40, E = 30, F = 55.
  • 4CR4025KF-4 — Material: AISI 304; Finish: Micro-shot blasted; DN: 40/25; Dimensions (mm): A = 130, B = 65, C = 100, D = 50, E = 40, F = 55.
  • 4CR5040KF-4 — Material: AISI 304; Finish: Micro-shot blasted; DN: 50/40; Dimensions (mm): A = 140, B = 70, C = 130, D = 65, E = 55, F = 75.

Technical characteristics / specifications
  • Available material: AISI 304
  • Finish: Micro-shot blasted
  • Flange type: KF
  • Function: Four-way reducer to connect differing nominal diameters (DN)
  • Category: Connection fittings
