Vacuum fitting 6C series

flangecrossISO

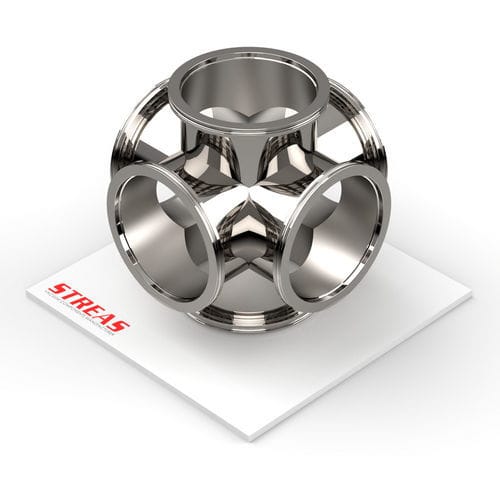

Six-way connector with ISO-K flanges, designed for connections in ISO line systems; available in AISI 304. The product is offered in multiple DN sizes with specified external/internal finishes.

Main details

• Type: 6-way connection fittings for ISO-K flanges
• Material available: AISI 304
• Finishes: externally mechanically polished and internally unfinished; micro-shot-peened (for some sizes)

Items

• 6C63ISOK-4: Material AISI 304; Finish: mechanically polished external and unfinished internal; DN 63; A = 176 mm (6.929 in); B = 88 mm (3.465 in); C = 95 mm (3.74 in)
• 6C80ISOK-4: Material AISI 304; Finish: mechanically polished external and unfinished internal; DN 80; A = 216 mm (8.504 in); B = 108 mm (4.252 in); C = 110 mm (4.331 in)
• 6C100ISOK-4: Material AISI 304; Finish: mechanically polished external and unfinished internal; DN 100; A = 216 mm (8.504 in); B = 108 mm (4.252 in); C = 130 mm (5.118 in)
• 6C160ISOK-4: Material AISI 304; Finish: mechanically polished external and unfinished internal; DN 160; A = 276 mm (10.866 in); B = 138 mm (5.433 in); C = 180 mm (7.087 in)
• 6C200ISOK-4: Material AISI 304; Finish: micro-shot-peened; DN 200; A = 400 mm (15.748 in); B = 200 mm (7.874 in); C = 240 mm (9.449 in)
• 6C250ISOK-4: Material AISI 304; Finish: micro-shot-peened; DN 250; A = 416 mm (16.378 in); B = 208 mm (8.189 in); C = 290 mm (11.417 in)

Features / technical specifications

• Line: ISO-K
• Line type: ISO
• Product type: connection fittings (6-way cross)
• Material: AISI 304 (variants indicated in the items table)
• Finishes: externally mechanically polished and internally unfinished; micro-shot-peened for some sizes
• Available DN variants (shown items): 63, 80, 100, 160, 200, 250
• Availability and stock level: indicated per item (on request or medium availability)
• Technical documentation available in PDF (product sheet and technical datasheet)
