Vacuum fitting R series
flange304 stainless steel

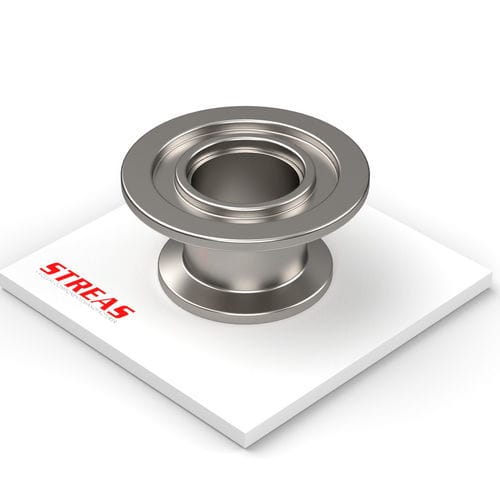

Vacuum fitting - R series - Streas srl - flange / 304 stainless steel
Vacuum fitting - R series - Streas srl - flange / 304 stainless steel
Vacuum fitting - R series - Streas srl - flange / 304 stainless steel - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
for vacuum
Attachment
flange
Material
304 stainless steel
Diameter

Max.: 50 mm
(1.969 in)

Min.: 10 mm
(0.394 in)

Description

The KF reducer is a straight connector fitted with KF flanges to join components with different nominal diameters (DN). It is designed for vacuum system applications and supplied with a micro-blasted surface finish.

Key features
  • Line: KF
  • Product type: Connection fittings
  • Finish: Micro-blasted


Available items
  • R1610KF-4 — DN 10/16 — Dimensions: A 30 mm, B 30 mm, C 28 mm
  • R2510KF-4 — DN 25/10 — Dimensions: A 40 mm, B 30 mm, C 28 mm
  • R2516KF-4 — DN 25/16 — Dimensions: A 40 mm, B 30 mm, C 28 mm
  • R4010KF-4 — DN 40/10 — Dimensions: A 55 mm, B 30 mm, C 28 mm
  • R4016KF-4 — DN 40/16 — Dimensions: A 55 mm, B 30 mm, C 28 mm
  • R4025KF-4 — DN 40/25 — Dimensions: A 55 mm, B 40 mm, C 28 mm
  • R5016KF-4 — DN 50/16 — Dimensions: A 75 mm, B 30 mm, C 28 mm
  • R5025KF-4 — DN 50/25 — Dimensions: A 75 mm, B 40 mm, C 28 mm
  • R5040KF-4 — DN 50/40 — Dimensions: A 75 mm, B 55 mm, C 28 mm


Characteristics / technical specifications
  • Line: KF
  • Line type: KF
  • Product type: Connection fittings
  • Standard material: AISI 304
  • Surface finish: Micro-blasted
  • Use: Connection between components with different DN in vacuum systems
  • Availability: listed items show high availability
