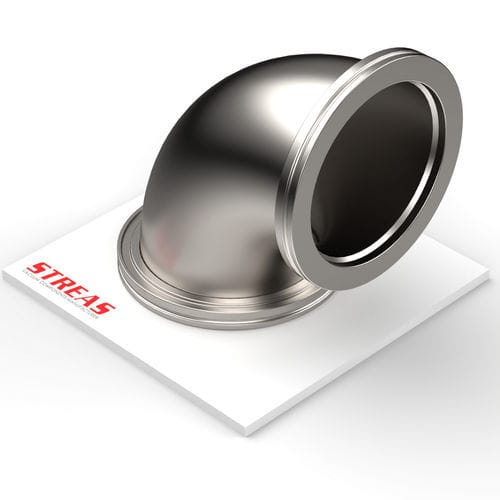

Stainless steel pipe elbow 90C series90°
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Other characteristics
- 90°
- DN
63 mm, 80 mm, 100 mm, 160 mm
(2 in, 3 in, 4 in, 6 in)
Description
Overview
90° elbow with ISO-K flanges, designed for inline connections according to the ISO standard. Available in AISI 304 with a micro-blasted finish.
Line specifications
Items (table)
Features / technical specifications
90° elbow with ISO-K flanges, designed for inline connections according to the ISO standard. Available in AISI 304 with a micro-blasted finish.
Line specifications
- Line: ISO-K
- Line type: ISO
- Product type: Connection fittings
Items (table)
- 90C63ISOK-4 — Materials: AISI 304; Finish: Micro-blasted; DN: 63; Availability: High availability; Dimensions: A = 95 mm (3.74 inch), B = 88 mm (3.465 inch), C = 80 mm (3.15 inch)
- 90C80ISOK-4 — Materials: AISI 304; Finish: Micro-blasted; DN: 80; Availability: Medium availability; Dimensions: A = 110 mm (4.331 inch), B = 108 mm (4.252 inch), C = 100 mm (3.937 inch)
- 90C100ISOK-4 — Materials: AISI 304; Finish: Micro-blasted; DN: 100; Availability: High availability; Dimensions: A = 130 mm (5.118 inch), B = 108 mm (4.252 inch), C = 100 mm (3.937 inch)
- 90C160ISOK-4 — Materials: AISI 304; Finish: Micro-blasted; DN: 160; Availability: Medium availability; Dimensions: A = 180 mm (7.087 inch), B = 235 mm (9.252 inch), C = 227 mm (8.937 inch)
Features / technical specifications
- Angle: 90°
- Flanges: ISO-K
- Material available: AISI 304
- Finish: Micro-blasted
- Technical drawing available (image file / modal)
