Vacuum fitting Croce a 4 vie CF

flangecrossvacuum

Product overview:

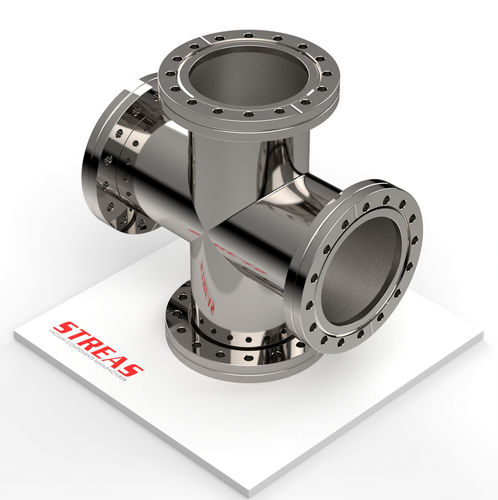

The CF four-way cross connector with CF flanges is designed for vacuum line connections. Supplied in AISI 304 with a mechanically polished external finish and raw internal surface.

Available variants:

• Code: 4C16CF-4 — Material: AISI 304 — Finish: Mech. polished ext. / Raw int. — DN: 16 — A: 76 mm (2.992 in) — B: 38 mm (1.496 in) — C: 34 mm (1.339 in) — Availability: Low availability
• Code: 4C38CF-4 — Material: AISI 304 — Finish: Mech. polished ext. / Raw int. — DN: 38 — A: 126 mm (4.961 in) — B: 63 mm (2.48 in) — C: 70 mm (2.756 in) — Availability: Medium availability
• Code: 4C63CF-4 — Material: AISI 304 — Finish: Mech. polished ext. / Raw int. — DN: 63 — A: 210 mm (8.268 in) — B: 105 mm (4.134 in) — C: 114 mm (4.488 in) — Availability: Medium availability
• Code: 4C100CF-4 — Material: AISI 304 — Finish: Mech. polished ext. / Raw int. — DN: 100 — A: 270 mm (10.63 in) — B: 135 mm (5.315 in) — C: 152 mm (5.984 in) — Availability: High availability
• Code: 4C150CF-4 — Material: AISI 304 — Finish: Mech. polished ext. / Raw int. — DN: 150 — A: 334 mm (13.15 in) — B: 167 mm (6.575 in) — C: 202 mm (7.953 in) — Availability: Low availability
• Code: 4C200CF-4 — Material: AISI 304 — Finish: Mech. polished ext. / Raw int. — DN: 200 — A: 420 mm (16.535 in) — B: 210 mm (8.268 in) — C: 253 mm (9.961 in) — Availability: Low availability

Characteristics / technical specifications:

• Line: CF
• Line type: CF
• Product type: Connection fittings (4-way cross)
• Material: AISI 304
• Finish: Mechanically polished external, raw internal
• Flanges: CF type
• Available sizes (DN): 16, 38, 63, 100, 150, 200
