Stainless steel pipe elbow 90C series

90°

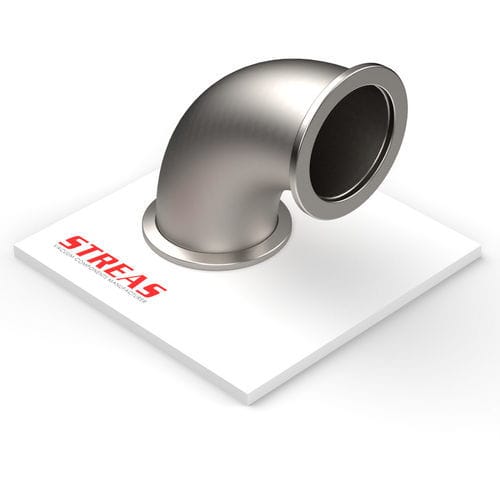

KF 90° elbow is a 90° curved fitting with KF flanges, designed for connection in vacuum lines with KF coupling. The product is available in AISI 304 with a micro‑blasted finish.

Items available

• 90C10KF-4 — DN 10 — Material: AISI 304 — Finish: Micro‑blasted — A: 30 mm (1.181 in) — B: 30 mm (1.181 in) — C: 20 mm (0.787 in)
• 90C16KF-4 — DN 16 — Material: AISI 304 — Finish: Micro‑blasted — A: 40 mm (1.575 in) — B: 30 mm (1.181 in) — C: 36 mm (1.417 in)
• 90C25KF-4 — DN 25 — Material: AISI 304 — Finish: Micro‑blasted — A: 50 mm (1.969 in) — B: 40 mm (1.575 in) — C: 42 mm (1.654 in)
• 90C40KF-4 — DN 40 — Material: AISI 304 — Finish: Micro‑blasted — A: 65 mm (2.559 in) — B: 55 mm (2.165 in) — C: 60 mm (2.362 in)
• 90C50KF-4 — DN 50 — Material: AISI 304 — Finish: Micro‑blasted — A: 70 mm (2.756 in) — B: 75 mm (2.953 in) — C: 70 mm (2.756 in)

Characteristics / technical specifications

• Line: KF
• Line type: KF
• Product type: Connection fittings
• Available material: AISI 304
• Finish: Micro‑blasted
• Configuration: 90° elbow with KF flanges
