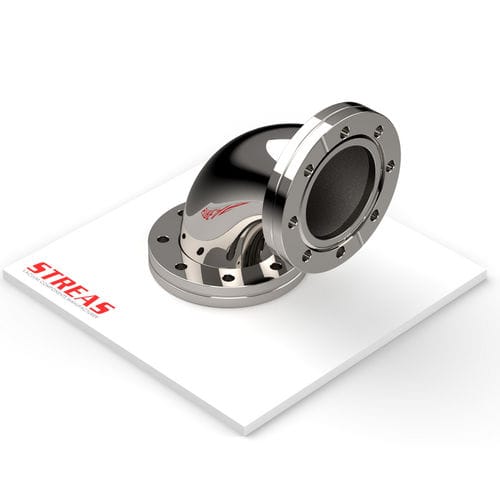

Stainless steel pipe elbow 90C series
90°

Stainless steel pipe elbow - 90C series - Streas srl - 90°
Stainless steel pipe elbow - 90C series - Streas srl - 90°
Stainless steel pipe elbow - 90C series - Streas srl - 90° - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Material
stainless steel
Other characteristics
90°
DN

16 mm, 38 mm, 63 mm, 100 mm
(0.6 in, 1.5 in, 2.5 in, 3.9 in)

Description

90° curved fitting for CF flange connections, designed for vacuum systems. Available in several dimensional variants for integration into CF line piping.

Available items
  • 90C16CF-4 — Material: AISI 304; Finish: External machined polish and internal as-rolled; DN: 16; A: 38 mm (1.496 inch); B: 34 mm (1.339 inch); C: 33 mm (1.299 inch)
  • 90C38CF-4 — Material: AISI 304; Finish: External machined polish and internal as-rolled; DN: 38; A: 63 mm (2.48 inch); B: 70 mm (2.756 inch); C: 58.4 mm (2.299 inch)
  • 90C63CF-4 — Material: AISI 304; Finish: External machined polish and internal as-rolled; DN: 63; A: 105 mm (4.134 inch); B: 114 mm (4.488 inch); C: 97.5 mm (3.839 inch)
  • 90C100CF-4 — Material: AISI 304; Finish: External machined polish and internal as-rolled; DN: 100; A: 135 mm (5.315 inch); B: 152 mm (5.984 inch); C: 127 mm (5 inch)


Features / technical specifications
  • Line: CF
  • Line type: CF
  • Product type: Connection fittings (90° curved fitting with CF flanges)
  • Material available: AISI 304
  • Finish: External machined polish and internal as-rolled
