Vacuum fitting 6C16CF-4

flangecross304 stainless steel

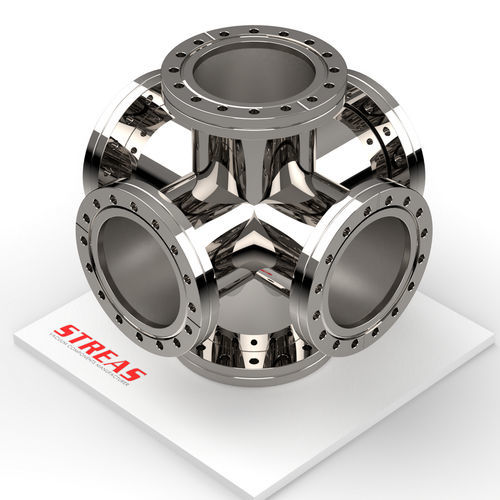

CF 6-way cross connector with CF flanges, designed for vacuum connections and available in AISI 304 stainless steel.

Main details:

• Line: CF
• Line type: CF
• Product type: Connection fittings
• Material: AISI 304
• Finish: External mechanical polish; internal as-welded (raw)

Available items:

• 6C16CF-4: Material AISI 304; External mechanical polish / internal as-welded; DN 16; A = 76 mm (2.992 in); B = 38 mm (1.496 in); C = 34 mm (1.339 in); Availability: On request.
• 6C38CF-4: Material AISI 304; External mechanical polish / internal as-welded; DN 38; A = 126 mm (4.961 in); B = 63 mm (2.48 in); C = 70 mm (2.756 in); Availability: Medium availability.
• 6C63CF-4: Material AISI 304; External mechanical polish / internal as-welded; DN 63; A = 210 mm (8.268 in); B = 105 mm (4.134 in); C = 114 mm (4.488 in); Availability: Low availability.
• 6C100CF-4: Material AISI 304; External mechanical polish / internal as-welded; DN 100; A = 270 mm (10.63 in); B = 135 mm (5.315 in); C = 152 mm (5.984 in); Availability: Medium availability.
• 6C150CF-4: Material AISI 304; External mechanical polish / internal as-welded; DN 150; A = 334 mm (13.15 in); B = 167 mm (6.575 in); C = 202 mm (7.953 in); Availability: On request.
• 6C200CF-4: Material AISI 304; External mechanical polish / internal as-welded; DN 200; A = 420 mm (16.535 in); B = 210 mm (8.268 in); C = 253 mm (9.961 in); Availability: On request.

Characteristics / technical specifications:

• Six-way connector with CF flanges
• Material: AISI 304
• External finish: mechanical polishing; internal finish: as-welded (raw)
• Type: connection fitting for CF in-line systems
• Coded items available for various DN (see item list for dimensional details)
• Datasheets: commercial product sheet and technical datasheet available (PDF)
