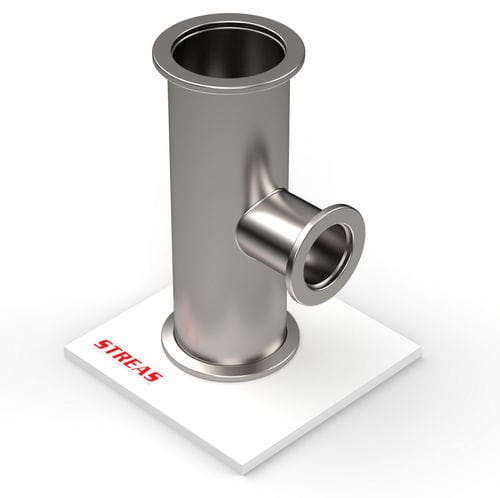

Vacuum fitting 3TR2510KF-4
flangeT-shaped304 stainless steel

Vacuum fitting - 3TR2510KF-4 - Streas srl - flange / T-shaped / 304 stainless steel
Vacuum fitting - 3TR2510KF-4 - Streas srl - flange / T-shaped / 304 stainless steel
Vacuum fitting - 3TR2510KF-4 - Streas srl - flange / T-shaped / 304 stainless steel - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
for vacuum
Attachment
flange
Configuration
T-shaped
Material
304 stainless steel
Other characteristics
reduction
Diameter

Min.: 10 mm
(0.394 in)

Max.: 50 mm
(1.969 in)

Description

Three-way connector equipped with KF flanges for connecting components with different nominal diameters (DN). Suitable for industrial piping and connection systems where compact, flanged reducing tees are required.

Product variants
  • Code: 3TR2510KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 25/10 — A: 100 mm (3.937 inch) — B: 50 mm (1.969 inch) — C: 30 mm (1.181 inch)
  • Code: 3TR2516KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 25/16 — A: 100 mm (3.937 inch) — B: 50 mm (1.969 inch) — C: 40 mm (1.575 inch)
  • Code: 3TR4010KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 40/10 — A: 130 mm (5.118 inch) — B: 65 mm (2.559 inch) — C: 30 mm (1.181 inch)
  • Code: 3TR4016KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 40/16 — A: 130 mm (5.118 inch) — B: 65 mm (2.559 inch) — C: 40 mm (1.575 inch)
  • Code: 3TR4025KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 40/25 — A: 130 mm (5.118 inch) — B: 65 mm (2.559 inch) — C: 50 mm (1.969 inch)
  • Code: 3TR5016KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 50/16 — A: 140 mm (5.512 inch) — B: 70 mm (2.756 inch) — C: 40 mm (1.575 inch)
  • Code: 3TR5025KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 50/25 — A: 140 mm (5.512 inch) — B: 70 mm (2.756 inch) — C: 50 mm (1.969 inch)
  • Code: 3TR5040KF-4 — Availability: High availability — Material: AISI 304 — Finish: Micro shot-blasted — DN: 50/40 — A: 140 mm (5.512 inch) — B: 70 mm (2.756 inch) — C: 65 mm (2.559 inch)

Features / Technical specifications
  • Line: KF
  • Line type: KF
  • Product type: Connection fittings (reducing tees)
  • Finish: Micro shot-blasted
  • Material available: AISI 304
  • Function: three-way connection for components with different nominal diameters
