Vacuum fitting 4C63ISOK-4
flangecrossISO

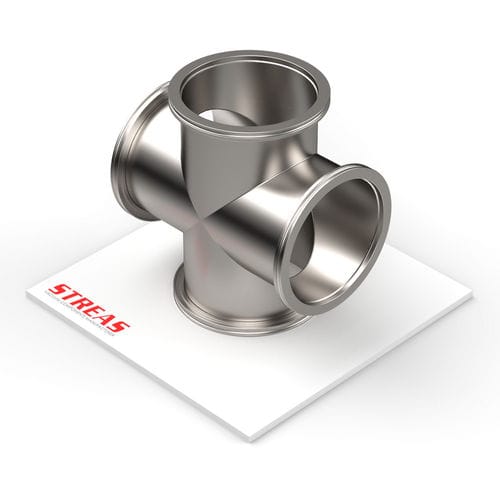

Vacuum fitting - 4C63ISOK-4 - Streas srl - flange / cross / ISO
Vacuum fitting - 4C63ISOK-4 - Streas srl - flange / cross / ISO
Vacuum fitting - 4C63ISOK-4 - Streas srl - flange / cross / ISO - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
for vacuum
Attachment
flange
Configuration
cross
Norms
ISO
Material
stainless steel
Other characteristics
vacuum
Diameter

Max.: 250 mm
(9.843 in)

Min.: 63 mm
(2.48 in)

Description

4-way connector with ISO-K flanges for vacuum systems. Available in AISI 304.

Key properties
  • Line: ISO-K
  • Line type: ISO
  • Product type: Connection fittings
  • Finish: Microblasted


Available items
  • Code: 4C63ISOK-4
    • Material: AISI 304
    • Finish: Microblasted
    • DN: 63
    • A: 176 mm (6.929 inch)
    • B: 88 mm (3.465 inch)
    • C: 95 mm (3.74 inch)
    • D: -
    • E: -
    • F: -
    • Availability: High availability
  • Code: 4C80ISOK-4
    • Material: AISI 304
    • Finish: Microblasted
    • DN: 80
    • A: 216 mm (8.504 inch)
    • B: 108 mm (4.252 inch)
    • C: 110 mm (4.331 inch)
    • D: -
    • E: -
    • F: -
    • Availability: High availability
  • Code: 4C100ISOK-4
    • Material: AISI 304
    • Finish: Microblasted
    • DN: 100
    • A: 216 mm (8.504 inch)
    • B: 108 mm (4.252 inch)
    • C: 130 mm (5.118 inch)
    • D: -
    • E: -
    • F: -
    • Availability: High availability
  • Code: 4C160ISOK-4
    • Material: AISI 304
    • Finish: Microblasted
    • DN: 160
    • A: 276 mm (10.866 inch)
    • B: 138 mm (5.433 inch)
    • C: 180 mm (7.087 inch)
    • D: -
    • E: -
    • F: -
    • Availability: High availability
  • Code: 4C200ISOK-4
    • Material: AISI 304
    • Finish: Microblasted
    • DN: 200
    • A: 356 mm (14.016 inch)
    • B: 178 mm (7.008 inch)
    • C: 240 mm (9.449 inch)
    • D: -
    • E: -
    • F: -
    • Availability: Medium availability
  • Code: 4C250ISOK-4
    • Material: AISI 304
    • Finish: Microblasted
    • DN: 250
    • A: 416 mm (16.378 inch)
    • B: 208 mm (8.189 inch)
    • C: 290 mm (11.417 inch)
    • D: -
    • E: -
    • F: -
    • Availability: Medium availability


Characteristics / technical specifications
  • Standard material: AISI 304
  • Finish: Microblasted
  • Flanges: ISO-K
  • Configuration: Cross (4-way)
  • Type: Vacuum connection fitting
  • Available sizes (DN): 63, 80, 100, 160, 200, 250
