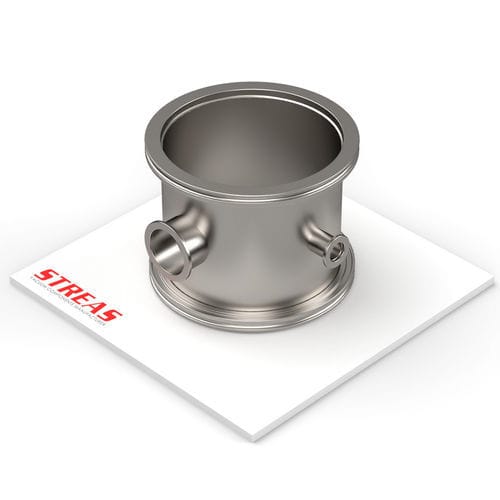

Flange fitting 4CR series

crossISO304 stainless steel

Four-way connection fitting with ISO-K flanges designed to join components with different nominal diameters (DN). Available with a micropitted finish and suitable for applications requiring ISO-standard connections.

Main information:

• Line: ISO-K
• Line type: ISO
• Product type: Connection fittings
• Standard finish: Micropitted

Available items:

• Code: 4CR63ISOK4016KF-4
  • Availability: High
  • DN: 63/40/16
  • A: 95 mm (3.74 inch)
  • B: 88 mm (3.465 inch)
• Code: 4CR80ISOK4016KF-4
  • Availability: Medium
  • DN: 80/40/16
  • A: 110 mm (4.331 inch)
  • B: 108 mm (4.252 inch)
• Code: 4CR100ISOK4016KF-4
  • Availability: High
  • DN: 100/40/16
  • A: 130 mm (5.118 inch)
  • B: 108 mm (4.252 inch)
• Code: 4CR160ISOK4016KF-4
  • Availability: High
  • DN: 160/40/16
  • A: 180 mm (7.087 inch)
  • B: 138 mm (5.433 inch)
• Code: 4CR200ISOK4016KF-4
  • Availability: Medium
  • DN: 200/40/16
  • A: 240 mm (9.449 inch)
  • B: 200 mm (7.874 inch)
• Code: 4CR250ISOK4016KF-4
  • Availability: Medium
  • DN: 250/40/16
  • A: 290 mm (11.417 inch)
  • B: 208 mm (8.189 inch)

Characteristics / technical specifications:

• Flanges: ISO-K for standardized connections
• Material available: AISI 304
• Finish: Micropitted
• Function: reduction and connection between different DNs via a 4-way cross
