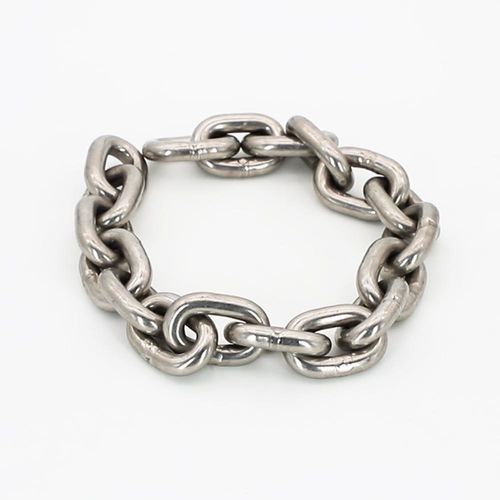

Anchor chain

304 stainless steelshort-linkwelded

Overview
AISI Stainless Steel 304 DIN 5685A short anchor link chain is an electric-resistance welded short-link chain manufactured to DIN 5685A dimensions. Made from AISI 304 stainless steel, it offers corrosion resistance suitable for freshwater and general marine environments and consistent geometry for smooth operation with deck fittings and windlasses.

Introduction
The chain is fabricated from AISI 304 austenitic stainless steel with electric resistance welded short-link construction in compliance with DIN 5685A (link pitch, inside width, manufacturing tolerances). The short-link form factor increases flexibility and enables reliable passage through rollers, pulleys and chain lockers. For continuous seawater immersion or high chloride exposure, AISI 316 grades are recommended.

Applications
Small boat anchor systems, anchor rode, mooring lines, dock fittings, yacht hardware, decorative maritime fixtures and general marine or utility uses. Not intended for overhead lifting, crane lifting or suspension of loads.

Product Features

• Manufactured to DIN 5685A
• AISI 304 stainless steel construction (approx. 18% Cr, 8% Ni)
• Electric resistance welded short-link design
• Chain diameters: 2 mm – 16 mm (standard); larger sizes available on request
• Suitable for freshwater and general marine environments
• Smooth finish for reduced fouling and easier handling
• Intended for anchoring, mooring and general marine hardware

Packaging, Port and Lead Time
Packaging Details
Packing options: Steel drum, wooden box, steel pallet or bulk packing.
Port
Qingdao, China
Lead Time (Supply Ability)
Approx. time: 1–1000 meters ~15 days; orders >1000 meters lead time to be negotiated.

Standards & Testing
Name: AISI Stainless Steel 304 DIN 5685A short anchor link chain
MOQ: 100 meters
Manufacturing standards: DIN 5685A, DIN 685, ISO 9001, ASTM A580, ASTM A276, EN 10088 (AISI 304 material specs).
Testing: dimensional inspection, weld inspection, visual inspection, mechanical property verification and proof load testing where specified. Material certificates and batch traceability available on request.

Maintenance
Inspect regularly for wear, elongation, cracked welds, deformation, pitting or crevice corrosion and surface contamination. Rinse with fresh water after seawater exposure to remove salt deposits. Replace any section with excessive wear, weld defects or permanent deformation.

Technical specifications

• Material: AISI 304 stainless steel (approx. 18% Cr, 8% Ni)
• Standard: DIN 5685A (short anchor link chain)
• Construction: Electric resistance welded short link
• Chain diameter range: 2 mm – 16 mm (standard); larger on request
• Typical uses: anchor systems, mooring, yacht hardware, dock fittings, decorative maritime fixtures
• Not suitable for: overhead lifting, crane lifting, suspended loads
• MOQ: 100 meters
• Packaging options: Steel drum, wooden box, steel pallet, bulk packing
• Port of shipment: Qingdao, China
• Lead time: ~15 days for 1–1000 meters; >1000 meters to be negotiated
• Quality & testing: dimensional and weld inspection, mechanical verification, proof load testing (if specified), material certificates and traceability
