Anchoring system Delta

Product Description

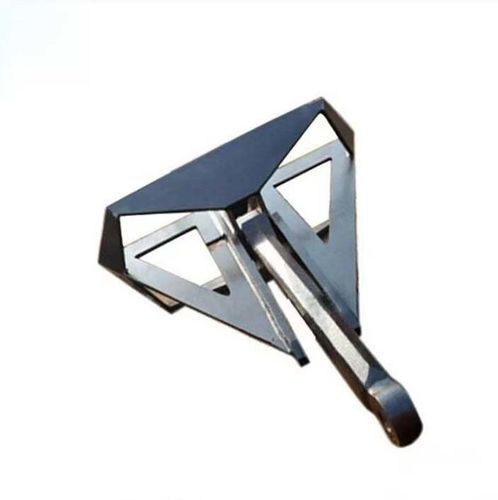

Delta Anchor is a High Holding Power (HHP) fixed-shank plow anchor designed for recreational and commercial marine craft. It features one-piece welded construction, a ballasted tip and self-righting geometry for immediate seabed penetration and reliable holding in sand, mud, gravel, clay and mixed bottoms. Standard products cover small sizes while larger custom models are available, with material options in high-grade manganese steel or Duplex stainless steel and finishes in hot-dip galvanizing or polished stainless steel.

Introduction
The Delta Anchor uses a one-piece welded design to eliminate moving joints found on hinged plow anchors. The narrow plow-shaped blade and weighted toe ensure rapid set after contact. The fixed shank provides structural strength, reduced maintenance and compatibility with most standard bow roller systems.

Product Features

• High Holding Power (HHP) fixed-shank plow anchor
• One-piece welded construction for increased strength
• Ballasted tip for rapid penetration
• Self-righting geometry for reliable orientation
• Compatible with most bow rollers for self-launching
• Manufactured in high-grade manganese steel or Duplex stainless steel
• Hot-dip galvanized or polished stainless steel finishes
• Standard weight range from 4 kg to 63 kg; larger custom sizes available
• Lloyd's Register General Approval as HHP anchor
• Permanent identification marking and full traceability

Parameters (dimensions and proof load)
Nominal Weight(kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Proof Load (kN)
300 | 1380 | 1200 | 960 | 465 | 1080 | 45 | 98
500 | 1725 | 1500 | 1200 | 570 | 1350 | 48 | 143
750 | 1950 | 1700 | 1360 | 650 | 1530 | 50 | 198
1000 | 2150 | 1870 | 1500 | 710 | 1680 | 62 | 250
1500 | 2460 | 2140 | 1710 | 815 | 1920 | 70 | 350
2000 | 2715 | 2360 | 1890 | 900 | 2125 | 75 | 435
2500 | 2925 | 2540 | 2035 | 970 | 2290 | 80 | 510
3000 | 3105 | 2700 | 2160 | 1030 | 2430 | 90 | 576
3500 | 3240 | 2845 | 2280 | 1087 | 2565 | 90 | 635
4000 | 3375 | 2953 | 2315 | 1140 | 2650 | 100 | 686
5000 | 3658 | 3200 | 2560 | 1225 | 2900 | 110 | 776
6000 | 3935 | 3405 | 2720 | 1310 | 3125 | 110 | 875
7000 | 4120 | 3580 | 2860 | 1360 | 3220 | 117 | 968
7500 | 4215 | 3666 | 2925 | 1390 | 3295 | 124 | 1005
8000 | 4315 | 3750 | 3000 | 1425 | 3380 | 130 | 1048
9000 | 4490 | 3874 | 3120 | 1480 | 3512 | 135 | 1108
10000 | 4725 | 4100 | 3280 | 1560 | 3690 | 140 | 1172
11000 | 4868 | 4140 | 3310 | 1600 | 3750 | 145 | 1238
12000 | 4960 | 4275 | 3420 | 1640 | 3860 | 150 | 1300
13500 | 5120 | 4450 | 3560 | 1700 | 4000 | 155 | 1408
15000 | 5345 | 4600 | 3685 | 1735 | 4160 | 160 | 1520
18000 | 5678 | 4890 | 3919 | 1840 | 4418 | 170 | 1710
20000 | 5880 | 5065 | 4050 | 1900 | 4570 | 175 | 1840

Standards and Manufacturing
Manufactured in accordance with ISO 1704, IACS Unified Requirement A1 and applicable marine anchor production specifications. Materials, welding and dimensional inspection are certified. The Delta Anchor holds Lloyd's Register General Approval as an HHP anchor.

Testing and Quality
Quality control includes chemical composition verification, dimensional and weld inspection, mechanical property testing, proof load testing, surface coating inspection and permanent identification marking. Individual Lloyd's Test Certification and material certificates are recorded per batch.

Applications
Suitable for yachts, sailing boats, motorboats, fishing vessels, patrol and rescue craft, workboats and commercial marine vessels operating on sand, mud, gravel, clay and mixed seabeds. Self-launching design suits most standard bow roller systems.

Maintenance
Regularly inspect for shank deformation, blade wear, corrosion, coating damage and weld integrity. Verify compatibility with bow roller and anchor chain. Replace anchors with excessive deformation or structural damage. Clean galvanized or stainless surfaces periodically to maintain corrosion resistance.

Technical specifications

• Model: Delta Anchor
• Type: Fixed-shank plow anchor, High Holding Power (HHP)
• Construction: One-piece welded construction, ballasted tip, self-righting geometry
• Materials: High-grade manganese steel or Duplex stainless steel
• Surface finishes: Hot-dip galvanized or polished stainless steel
• Standard weight range: 4 kg to 63 kg (standard); larger custom models available
• Boat size range covered by standard products: ~6 m to 27 m (20 ft–90 ft)
• Approvals: Lloyd's Register General Approval (HHP)
• Manufacturing standards: ISO 1704, IACS Unified Requirement A1, certified welding and dimensional inspection
• Testing: Chemical composition verification, dimensional and weld inspection, mechanical property testing, proof load testing, surface coating inspection, permanent identification marking; Lloyd's Test Certification recorded
• MOQ: 1 Piece
• Packaging options: Carton / Wooden Crate / Steel Pallet
• Compatibility: Calibrated anchor chains, galvanized anchor chains, stainless steel anchor chains, standard anchor swivels
