Mobile anchoring system AC-14

Product Overview

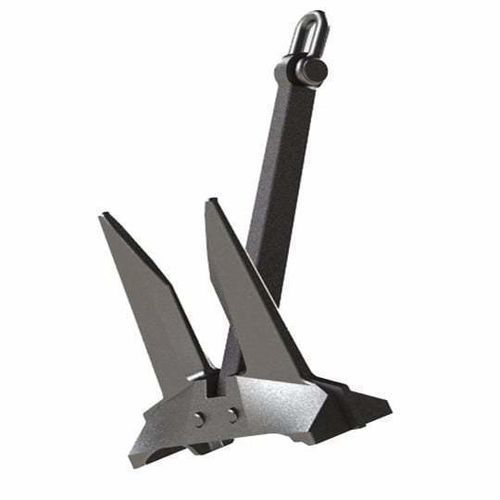

The AC-14 High Holding Power (HHP) Anchor is a stockless anchor designed for increased holding capacity with reduced weight. It features a wide crown, long reinforced flukes and longitudinal edges to ensure rapid penetration and stable holding in sand, mud, clay and mixed seabeds. Typical applications include large container ships, car carriers, VLCCs and offshore support vessels.

Introduction
Manufactured from marine-grade cast steel, the AC-14 is produced through casting, heat treatment, machining, dimensional inspection, proof load testing and final assembly. Standard nominal weights range from 75 kg to 30,000 kg, covering small workboats to large tankers and floating platforms. As an HHP design, the AC-14 can provide comparable holding power at approximately 25% lower weight than conventional stockless anchors subject to classification society rules. Anchors are supplied with matching chains, shackles, swivels and accessories to form a complete anchoring system.

Product Features

• High Holding Power (HHP) stockless design
• Nominal weights from 75 kg to 30,000 kg
• Marine-grade cast steel construction
• Compatible with stud link and studless anchor chains
• Suitable for sand, mud, clay and mixed seabeds
• Available with hot-dip galvanized or painted finish
• Permanent identification and full traceability

Standards and Approvals
The AC-14 is designed for commercial and offshore vessels and achieves significantly higher holding power than conventional stockless anchors of equivalent weight. It is manufactured to marine cast-steel specifications and holds approvals from major classification societies including ABS, BV, CCS, DNV, LR, NK, KR and RINA. Each unit is supplied with permanent identification marks and full inspection documentation.

Parameter Table
Nominal Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | J (mm)
75 | 550 | 326 | 350 | 606 | 188 | 185 | 115 | 24
495 | 1025 | 610 | 650 | 1135 | 350 | 348 | 235 | 50
1080 | 1350 | 805 | 855 | 1495 | 461 | 455 | 280 | 62
2100 | 1686 | 1005 | 1070 | 1865 | 575 | 570 | 380 | 82
3040 | 1896 | 1130 | 1204 | 2100 | 646 | 640 | 410 | 90
4840 | 2225 | 1330 | 1410 | 2465 | 760 | 755 | 480 | 110
5175 | 2275 | 1358 | 1443 | 2520 | 777 | 770 | 480 | 110
6000 | 2390 | 1426 | 1515 | 2646 | 816 | 810 | 500 | 110
7875 | 2610 | 1558 | 1655 | 2890 | 891 | 884 | 600 | 130
8775 | 2707 | 1614 | 1715 | 2996 | 924 | 916 | 630 | 135
9675 | 2805 | 1674 | 1778 | 3104 | 957 | 948 | 640 | 140
10125 | 2850 | 1700 | 1806 | 3152 | 972 | 960 | 640 | 140
11025 | 2930 | 1750 | 1859 | 3247 | 1001 | 990 | 660 | 145
12075 | 3010 | 1800 | 1906 | 3343 | 1027 | 1020 | 700 | 155
13350 | 3132 | 1870 | 1986 | 3470 | 1069 | 1060 | 700 | 155
14100 | 3178 | 1896 | 2015 | 3520 | 1084 | 1076 | 730 | 160
15400 | 3272 | 1954 | 2075 | 3626 | 1117 | 1108 | 770 | 170
16900 | 3350 | 2000 | 2126 | 3720 | 1144 | 1144 | 770 | 170
17800 | 3440 | 2050 | 2180 | 3806 | 1173 | 1162 | 800 | 180
18800 | 3500 | 2088 | 2220 | 3875 | 1193 | 1185 | 800 | 180
20000 | 3573 | 2132 | 2265 | 3956 | 1220 | 1210 | 820 | 185
25000 | 4100 | 2437 | 2600 | 4577 | 1399 | 1375 | 880 | 200
30000 | 4358 | 2588 | 2765 | 4863 | 1484 | 1380 | 940 | 210

Characteristics / Technical specifications

• Model/Type: AC-14 High Holding Power (HHP) Anchor
• Design: Stockless HHP with wide crown and enlarged flukes
• Material: Marine-grade cast steel
• Nominal weight range: 75 kg to 30,000 kg (standard)
• Applicable seabeds: sand, mud, clay, mixed seabeds
• Compatibility: Stud link and studless anchor chains
• Surface finishes: Hot-dip galvanized or painted
• Supply: Supplied with matching chains, shackles, swivels and accessories to form a complete anchoring system
• Certification/Approval: Recognized by ABS, BV, CCS, DNV, LR, NK, KR, RINA
• Traceability: Permanent identification and full inspection documentation provided
