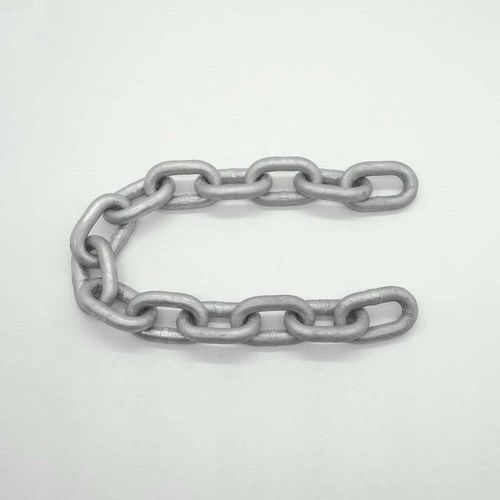

Anchor chain G43

carbon steelgalvanised steelzinc-plated

Introduction

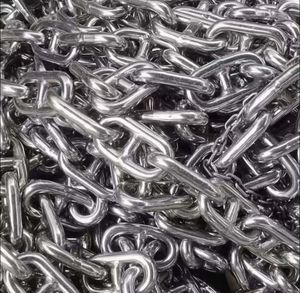

G43 Hot Dip Galvanized Short Anchor Chain is a welded high-tensile carbon steel short-link chain designed for anchor windlass systems, marine anchoring and related mooring applications. The short-link calibrated construction ensures reliable engagement with compatible windlass gypsies, reduces twisting and improves chain flexibility during pay-out and retrieval. Grade 43 offers a higher working load limit for a given diameter than Grade 30. The chain receives a hot-dip galvanized coating for corrosion protection in freshwater and seawater. This product is intended for anchoring and mooring use only and is not suitable for overhead lifting or suspended loads.

Key Features

• Grade 43 (High Test) chain with improved strength-to-weight ratio versus Grade 30.
• Short-link (short pitch) calibrated construction for positive engagement with windlass gypsies.
• Hot-dip galvanized finish for corrosion resistance in marine environments.
• Manufactured from high-tensile carbon steel with electrically welded links.
• Not to be used for overhead lifting or suspended load handling — anchoring and mooring applications only.
• Each production batch undergoes weld inspection, dimensional calibration, proof load testing, mechanical property verification and visual inspection.

Standards & Quality

• Grade: Grade 43 (High Test), providing greater strength than standard Grade 30 proof coil chain.
• Manufacturing standard: Conforms to NACM and ISO specifications for calibrated short-link chain.
• Material: High-tensile carbon steel selected for strength and durability.
• Finish: Hot-dip galvanized for long-term corrosion resistance in marine environments.
• Calibration & Testing: Every link is proof tested and calibrated to ensure smooth operation with anchor windlasses.
• Application warning: Specifically designed for anchoring and mooring — not for overhead lifting.

Technical Specifications Table (rows extracted from product table; values correspond to the table columns as presented on the page)
Header order (as in source table): Diameter, (tolerance), Inner Length, (tolerance +), (tolerance -), Inner Width, Outer Width, Length per 11 links, Weight (kg/m), Proof Load (kN), Breaking Load (kN).
Rows (each row lists the cell values in the same sequence as the table):
2, 0.2, 12, 0.2, 0.2, 3.5, 7.5, 132, 1, 0.5, 0.07
3, 0.2, 16, 0.2, 0.2, 4.2, 11, 176, 1.1, 0.7, 0.16
4, 0.2, 16, 0.3, 0.2, 5, 13.7, 176, 2.1, 1.1, 0.32, 3.92, 8
5, 0.2, 18.5, 0.4, 0.2, 6, 17, 203.5, 2.4, 1.2, 0.5, 6.25, 12.5
6, 0.2, 18.5, 0.4, 0.2, 7.2, 20.2, 203.5, 2.4, 1.2, 0.8, 7.84, 16
7, 0.3, 22, 0.4, 0.2, 8.4, 23.8, 242, 3, 1.4, 1.1, 12.3, 25
8, 0.3, 24, 0.4, 0.2, 9.6, 27.2, 264, 3.2, 1.5, 1.4, 15.7, 32
9, 0.4, 27, 0.5, 0.3, 10.8, 30.6, 297, 3.6, 1.8, 1.8, 19.6, 40
10, 0.4, 28, 0.5, 0.3, 12, 34, 308, 3.7, 1.9, 2.2, 24.5, 50
11, 0.4, 31, 0.5, 0.3, 13.2, 37.4, 341, 4, 2, 2.7, 31.4, 63
12, 0.3, 36, 0.6, 0.3, 14.4, 40.8, 396, 4.4, 2.2, 3.1, 35.7, 71.5
13, 0.5, 36, 0.6, 0.3, 15.6, 44.2, 396, 4.6, 2.4, 3.8, 39.2, 80
14, 0.6, 41, 0.7, 0.4, 16.8, 47.6, 451, 5.4, 2.7, 4.4, 49, 100
16, 0.6, 45, 0.8, 0.4, 19.2, 54.4, 495, 6, 3, 5.7, 62.7, 125
18, 0.9, 50, 0.8, 0.4, 21.6, 61.2, 550, 6.6, 3.3, 7.3, 78.4, 160
19, 0.4, 53, 0.9, 0.4, 22.8, 64.6, 583, 7, 3.7, 7.97, 90, 180
20, 1, 56, 1, 0.5, 24, 68, 616, 7.4, 3.7, 9, 98, 200
23, 1.2, 64, 1.1, 0.5, 27.6, 78.2, 704, 8.4, 4.2, 12, 123.5, 250
26, 1.3, 73, 1.2, 0.6, 31.2, 88.4, 803, 9.6, 4.8, 15, 156.8, 320
28, 1.4, 78, 1.3, 0.65, 33.8, 95.2, 858, 10.2, 5.1, 18
30, 1.5, 84, 1.4, 0.7, 41, 102, 924, 11, 5.5, 19.5
32, 1.6, 90, 1.5, 0.75, 43, 108.8, 990, 11.8, 5.9, 23

Characteristics / Technical specifications

• Product: G43 Hot Dip Galvanized Short Anchor Chain.
• Grade: 43 (High Test).
• Material: High-tensile carbon steel, electrically welded short-link construction.
• Finish: Hot-dip galvanization for long-term corrosion resistance (suitable for freshwater and seawater).
• Manufacturing & testing: Weld inspection, dimensional calibration, proof load testing, mechanical property verification, visual inspection.
• Application: Anchor windlass systems, anchor rodes, dock mooring, utility chains, general marine use — not for overhead lifting.
• Available diameters: multiple sizes from 2 mm up to 32 mm (table above shows full size range and corresponding load/weight data).
