Anchoring system HDG

Product Overview

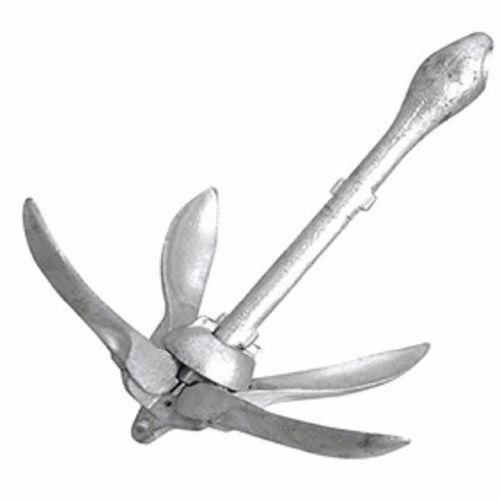

HDG Folding Anchor Type A is a hot-dip galvanized (HDG) four-fluke folding grapnel anchor engineered for portable anchoring of small boats, inflatable boats, kayaks, canoes, jet skis and other personal watercraft. Its folding four-arm design folds against the shank for compact onboard storage and unlocks quickly for deployment. Standard weights cover 0.7–12 kg; custom sizes available on request.

Introduction
The anchor is manufactured from welded carbon steel and finished by hot‑dip galvanizing to provide a metallurgical zinc coating suitable for both freshwater and seawater environments. A sliding locking collar secures the flukes in stowed position and releases easily to allow the arms to open and engage the seabed, creating multiple contact points for improved holding on irregular bottoms.

Product Features

• Four-fluke folding grapnel design for compact storage
• Welded carbon steel construction with hot-dip galvanized (HDG) finish
• Sliding locking collar for fast deployment and secure transport
• Weight range typically 0.7 kg to 12 kg (standard sizes: 1.5, 2.5, 3.2, 4, 6, 8 kg)
• Suitable for freshwater and seawater use
• Can be supplied with rope, chain, shackles and swivels on request

Parameter
Weight | H | D | a
1.5KG | 278 | 290 | 75±5°
2.5KG | 334 | 320 | 75±5°
3.2KG | 370 | 360 | 75±5°
4KG | 422 | 400 | 75±5°
6KG | 500 | 465 | 75±5°
8KG | 536 | 535 | 75±5°

Standards & Manufacturing
Product name: HDG Folding Anchor Type A
MOQ: 100 Pieces
Packaging options: Carton / Wooden Crate / Steel Pallet
Manufactured from welded carbon steel in accordance with marine fabrication best practices. Hot-dip galvanizing performed to provide a metallurgical zinc coating; coatings produced in line with ISO 1461 requirements. Customized dimensions and weights available per customer specifications.
Testing and inspection: dimensional checks, weld inspection, visual inspection, coating inspection and functional opening/locking tests performed before shipment. Material certificates, coating inspection reports and production traceability available on request.

Application
Designed for inflatable boats, dinghies, tenders, kayaks, canoes, jet skis, personal watercraft and small recreational vessels. Effective on sand, mud, gravel, weed, coral and rocky seabeds where multiple flukes can engage irregular surfaces.

Maintenance
Inspect regularly for corrosion, bent flukes, damaged welds, wear on the sliding collar or deformation of the shank. Rinse with fresh water after seawater exposure, lubricate the collar if required and replace the anchor if structural damage or excessive corrosion is detected.

Caractéristiques / Spécifications techniques

• Model: HDG Folding Anchor Type A
• Material: Welded carbon steel
• Finish: Hot-dip galvanized (HDG), zinc metallurgical coating formed at ~450°C
• Standard weight range: 0.7–12 kg (standard: 1.5, 2.5, 3.2, 4, 6, 8 kg)
• Folding type: Four-fluke grapnel with sliding locking collar
• Suitable seabeds: Sand, mud, gravel, weed, coral, rocky bottoms
• Suitable vessels: Inflatable boats, dinghies, kayaks, canoes, jet skis, personal watercraft, small fishing boats, tenders
• Packaging: Carton / Wooden Crate / Steel Pallet
• MOQ: 100 pieces
• Standards: ISO 1461 for HDG coatings; dimensional, weld, visual and functional inspections performed
