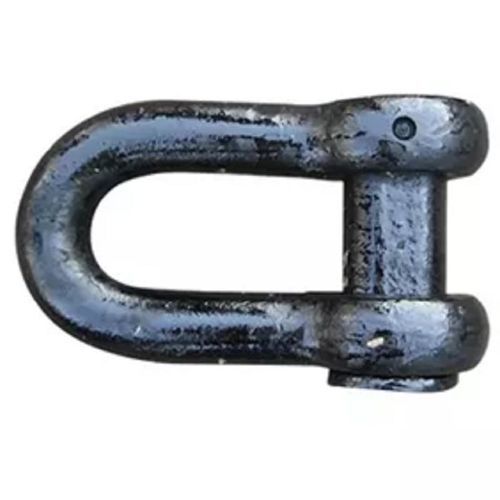

D lifting shackle

for marine applications

Overview
Joining Shackle Type D is a forged anchor-chain connecting shackle designed to join two sections of stud link or studless anchor chain in marine anchoring and offshore mooring systems. Sizes cover nominal chain diameters from 12.5 mm to 162 mm and are available for U2 and U3 chain grades.

Product Summary
The assembly provides a secure mechanical connection that maintains dimensional compatibility with adjacent chain links, ensuring smooth passage through chain lockers, chain pipes and windlass gypsies. Each shackle is proof tested, inspected and supplied with full traceability documentation in accordance with applicable classification requirements.

Introduction
The shackle is a detachable connecting component used to assemble individual shots of anchor chain into a continuous anchor cable for commercial vessels, offshore platforms and permanent mooring systems. It is manufactured from forged alloy steel and engineered to match the mechanical and dimensional properties of stud link and studless anchor chains.

Assembly
The assembly comprises a shackle body, main connecting pin, locking pin and lead plug. After installation the connecting pin is mechanically locked to prevent loosening under repeated loading and anchor handling operations. The finished assembly preserves a profile similar to neighbouring chain links to permit reliable operation in anchor handling equipment.

Manufacturing and Application
Manufactured by closed-die forging followed by machining, heat treatment, dimensional calibration and proof load testing. Standard products support nominal chain diameters 12.5–162 mm for U2 and U3 grades. Typical applications include container ships, bulk carriers, tankers, LNG carriers, FPSOs, offshore platforms, naval vessels and permanent moorings.

Product Features

• Forged alloy steel construction
• Compatible with stud link and studless anchor chains
• Nominal chain sizes: 12.5–162 mm
• Available for U2 and U3 chain grades
• Mechanical locking pin design for secure fixation
• Profile compatible with standard windlass and chain handling systems
• Permanent identification marking and full traceability

Parameters

• 12.5–22 mm | Grade: U2 / U3 | Proof & breaking loads: per IACS UR W18 | Material: Forged alloy steel | Application: Ship anchor chain
• 24–38 mm | Grade: U2 / U3 | Proof & breaking loads: per IACS UR W18 | Material: Forged alloy steel | Application: Marine anchoring
• 40–58 mm | Grade: U2 / U3 | Proof & breaking loads: per IACS UR W18 | Material: Forged alloy steel | Application: Offshore mooring
• 60–84 mm | Grade: U2 / U3 | Proof & breaking loads: per IACS UR W18 | Material: Forged alloy steel | Application: Offshore platforms
• 87–122 mm | Grade: U2 / U3 | Proof & breaking loads: per IACS UR W18 | Material: Forged alloy steel | Application: FPSO / large vessels
• 124–162 mm | Grade: U2 / U3 | Proof & breaking loads: per IACS UR W18 | Material: Forged alloy steel | Application: Permanent mooring

Standards and Quality
MOQ: 100 pieces. Packaging: steel pallet, wooden crate or bulk packing. Manufactured in accordance with IACS UR W18, IACS UR A1, ISO 1704 and applicable requirements of classification societies (ABS, BV, CCS, DNV, LR, NK, KR, RINA, RS). All load-bearing components are forged, heat-treated and machined to match chain grade properties. Material certificates, inspection reports and classification certificates available.

Maintenance
Inspect regularly for body deformation, pin wear, locking pin condition, lead plug integrity, corrosion, cracks and excessive wear. Verify locking components after anchor handling. Replace damaged or worn shackles immediately according to classification society requirements.

Technical specifications

• Model: Joining Shackle Type D
• Material: Forged alloy steel
• Chain size range: 12.5 mm to 162 mm
• Supported chain grades: U2, U3
• Components: shackle body; main connecting pin; locking pin; lead plug
• Manufacturing: closed-die forging, machining, heat treatment, dimensional calibration
• Testing: proof load testing, mechanical property verification, MPI where applicable, hardness and dimensional inspection
• Standards: IACS UR W18, IACS UR A1, ISO 1704; classification society compliance (ABS, BV, CCS, DNV, LR, NK, KR, RINA, RS)
• MOQ: 100 pieces
• Packaging: steel pallet, wooden crate or bulk packing
• Identification: permanent marking and full traceability documentation
