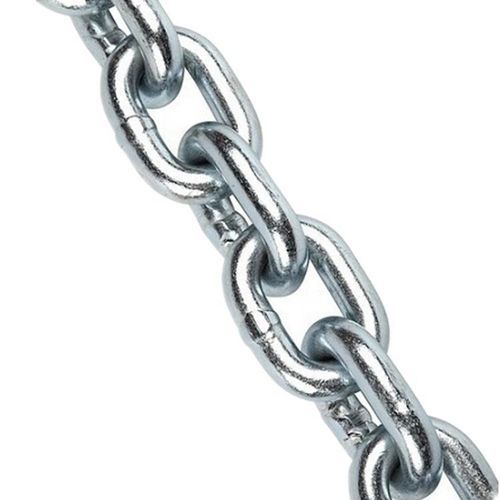

Anchor chain Grade 43

carbon steelhot-dip galvanised steelshort-link

Overview
Grade 43 High Test anchor and windlass chain is a calibrated, welded high-tensile carbon steel chain manufactured to NACM Grade 43 requirements. Short link geometry increases flexibility and reduces tendency to jam in the chain locker, making it suitable for windlass gypsies calibrated for HT chain. The chain is marked with an embossed G4 identifier and is proof tested at the factory to twice the Working Load Limit. Available finishes include hot-dip galvanized, zinc plated, or self-color for selection based on vessel operating conditions.

Introduction
Grade 43 (High Test) chain offers a higher strength-to-weight ratio than Proof Coil (Grade 30) chain and is commonly used for anchor rodes and windlass systems on recreational and commercial vessels. It is not rated for overhead lifting or suspended loads. Binder chain variants are often supplied with clevis grab hooks for towing or securing but the anchor windlass version is specified for marine anchoring applications and compatibility with windlass gypsies.

Key Product Details
Grade 43 High Test anchor windlass chain is designed for marine anchoring and windlass systems. It provides a substantially higher Working Load Limit compared with Grade 30 of equivalent diameter while remaining compatible with calibrated windlass gypsies designated for HT chain. Standard production covers a wide size range; proof testing, dimensional calibration, weld inspection and coating inspection are performed prior to shipment. The product is intended exclusively for anchoring and windlass use, not for overhead lifting.

Parameter

• Grade of Chain: NACM Grade 43 High Test (references NACM and ASTM)
• Working Load Limit (WLL): Maximum recommended working tension for an undamaged, straight length of chain
• Proof Test: Factory applied proof load for production integrity verification; not to be used as design load
• Minimum Breaking Force: Measured manufacturer test result under direct-tension; provided for reference, not a service guarantee
• Overhead Lifting: Not rated or permitted for overhead lifting, crane lifting, or suspended loads

Size Table (each line = Size | D (mm) | Inside Length A (mm) | Inside Length A +/- (mm) | Outside Width B (mm) | Outside Width B +/- (mm) | Working Load (KG) | Test Load (N) | Breaking Load (N) | Weight Per M (KG))
3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15
4 | 0.5 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27
5 | 0.5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43
6 | 0.5 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63
7 | 0.5 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86
8 | 0.5 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1
9 | 0.5 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41
10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75
11 | 1 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11
12 | 1 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55
13 | 1 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95
16 | 1 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45
18 | 1 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65
19 | 1 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25
20 | 1 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7
22 | 1 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55
25 | 1 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9
28 | 1 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9
32 | 1 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2

Standards

• Name: Grade 43 High Test Anchor Windlass Chain
• MOQ: 100 Meters
• Package: Steel Drum / Wooden Box / Steel Pallet / Bulk Packing
• Manufacturing Standards: Manufactured from high tensile carbon steel to NACM Grade 43 High Test, applicable ASTM material specifications, ASME B30.26, OSHA 1910.184, and calibrated short-link manufacturing requirements for marine windlass systems; electrically welded construction; finishes: hot-dip galvanized, zinc plated, self-color
• Testing Standards: Proof load testing, dimensional calibration, weld inspection, visual inspection, mechanical property verification, coating inspection; factory tested to twice WLL; inspection reports and material certificates available on request
• Application Standards: Suitable for anchor windlass systems, anchor rodes, yachts, sailing vessels, fishing boats, workboats, marina facilities and dock mooring where Grade 43 HT calibrated chain is specified; not for overhead lifting
• Maintenance Standards: Regularly inspect for corrosion, excessive wear, elongated links, cracked welds, deformation and coating damage; rinse with fresh water after extended seawater exposure and replace sections showing excessive wear

Features / Technical specifications

• Commercial name: Grade 43 High Test Anchor Windlass Chain
• Brand: TOPONE CHAIN
• Material: High tensile carbon steel (electrically welded)
• Link type: Calibrated short link (embossed G4)
• Intended use: Anchor windlass systems and marine anchoring
• Not suitable for: Overhead lifting, crane lifting, suspended loads
• Available sizes: Standard 1/4 in. to 1/2 in. (6 mm–13 mm); extended range 3 mm–32 mm (see size table)
• Finishes: Hot-dip galvanized, zinc plated, self-color
• MOQ: 100 Meters
• Packaging: Steel drum, wooden box, steel pallet, bulk packing
• Testing: Proof load testing, dimensional calibration, weld inspection, visual inspection, mechanical property verification, coating inspection; factory tested to twice WLL
• Standards compliance: NACM Grade 43, ASTM, ASME B30.26, OSHA 1910.184
• Identification: Embossed G4 marking
• Weight per meter: See size table
