Temporary anchor line DIN766

Application scenarios
Anchor chain, windlass systems, mooring lines, marina and dock installations, yacht and boat anchoring accessories, boarding ladders and deck fittings, general marine hardware for recreational and commercial vessels

Overview

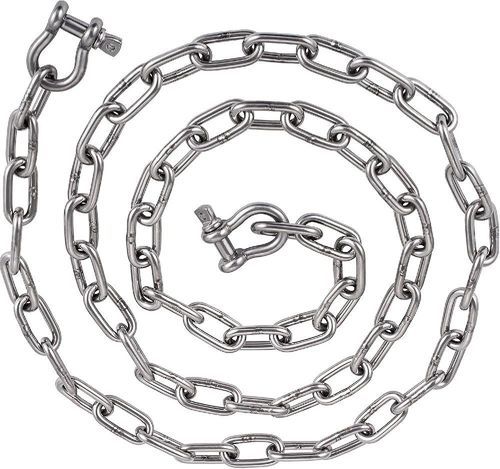

DIN 766 anchor chain is a calibrated short-link chain manufactured to DIN 766 dimensional requirements for anchor windlass gypsies. Available in AISI 304 or AISI 316 stainless steel, the chain ensures precise engagement with DIN 766 windlass gypsies and strong corrosion resistance in freshwater and seawater environments. Standard nominal sizes cover 6 mm to 16 mm; larger or custom sizes can be produced on request. The chain is proof tested and inspected prior to shipment. Not suitable for overhead lifting or suspended loads.

Introduction
Manufactured by electric resistance welding and subsequently calibrated, DIN 766 short-link anchor chain offers consistent pitch and inside width to reduce slip and ensure reliable anchor deployment and retrieval. AISI 304 is recommended for freshwater and general marine use; AISI 316 (with molybdenum) is recommended for long-term seawater exposure. Typical uses include yachts, sailing boats, fishing vessels, motorboats and marina equipment.

Product Features

• Produced to DIN 766 calibrated dimensions
• AISI 304 or AISI 316 stainless steel options
• Short-link welded construction for consistent geometry
• Compatible with DIN 766 windlass gypsies
• High corrosion resistance in marine environments
• Standard sizes 6 mm–16 mm; additional sizes available
• Individual dimensional inspection and traceability

Parameter
DIN766 SHORT LINK CHAIN
Header: Size (MM), ±MM, Inside Length (MM), +MM, -MM, Inside Width (MM), Outside Width (MM), Length Per 11 Links (MM), +MM, -MM, Weight Per M (KG)
Size 2: 0.2, 12, 0.2, 0.2, 3.5, 7.5, 132, 1.0, 0.5, 0.07
Size 3: 0.2, 16, 0.2, 0.2, 4.2, 11, 176, 1.4, 0.7, 0.16
Size 4: 0.2, 16, 0.3, 0.2, 5, 13.7, 176, 2.1, 1.1, 0.32
Size 5: 0.2, 18.5, 0.4, 0.2, 6, 17, 203.5, 2.4, 1.2, 0.5
Size 6: 0.2, 18.5, 0.4, 0.2, 7.2, 20.2, 203.5, 2.4, 1.2, 0.8
Size 7: 0.3, 22, 0.4, 0.2, 8.4, 23.8, 242, 3.0, 1.4, 1.1
Size 8: 0.3, 24, 0.4, 0.2, 9.6, 27.2, 264, 3.2, 1.5, 1.4
Size 9: 0.4, 27, 0.5, 0.3, 10.8, 30.6, 297, 3.6, 1.8, 1.8
Size 10: 0.4, 28, 0.5, 0.3, 12, 34, 308, 3.7, 1.9, 2.2
Size 11: 0.4, 31, 0.5, 0.3, 13.2, 37.4, 341, 4.0, 2.0, 2.7
Size 12: 0.3, 36, 0.6, 0.3, 14.4, 40.8, 396, 4.4, 2.2, 3.10
Size 13: 0.5, 36, 0.6, 0.3, 15.6, 44.2, 396, 4.6, 2.4, 3.8
Size 14: 0.6, 41, 0.7, 0.4, 16.8, 47.6, 451, 5.4, 2.7, 4.4
Size 16: 0.6, 45, 0.8, 0.4, 19.2, 54.4, 495, 6.0, 3.0, 5.7
Size 18: 0.9, 50, 0.8, 0.4, 21.6, 61.2, 550, 6.6, 3.3, 7.3
Size 19: 0.4, 53, 0.9, 0.4, 22.8, 64.6, 583, 7.0, 3.7, 7.97
Size 20: 1.0, 56, 1.0, 0.5, 24.0, 68.0, 616, 7.4, 3.7, 9.0
Size 22: 1.2, 62, 1.1, 0.5, 26.4, 75.0, 682, 8.0, 4.0, 11.0
Size 23: 1.2, 64, 1.1, 0.5, 27.6, 78.2, 704, 8.4, 4.2, 12
Size 26: 1.3, 73, 1.2, 0.6, 31.2, 88.4, 803, 9.6, 4.8, 15

Standards / Product detail
Product Name: anchor chain
Material: 316 stainless steel (AISI 304 also available)
Main items: anchor chain and related marine hardware and accessories for boats and yachts
Brand: TopOne Chain
Working Load: 1400 KG (example value)
Supplier per: 50 m (standard pack length)
Application: anchoring, mooring and general marine hardware
Technology: electric resistance welding, precision calibration
Note: special specifications and marking available on request

Technical specifications

• Standards: manufactured to DIN 766 calibrated dimensions
• Materials: AISI 304 (freshwater/general marine) and AISI 316 (enhanced seawater resistance)
• Construction: short-link welded chain
• Sizes: standard range 6 mm–16 mm; additional sizes available (see parameter table)
• Inspection & testing: dimensional calibration, weld inspection, proof load testing and mechanical verification; individual traceability
• Intended use: anchoring and mooring only — not for overhead lifting or suspended loads
• Compatibility: calibrated pitch and inside width for reliable engagement with DIN 766 windlass gypsies
• Typical pack length: 50 m
