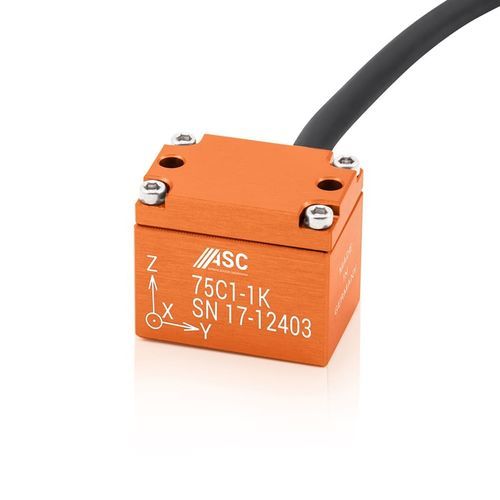

Triaxial accelerometer ASC 75C1piezoresistiveMEMSIP65
Add to favorites
Compare this product
Characteristics
- Number of axes
- triaxial
- Technology
- piezoresistive, MEMS
- Other characteristics
- IP65, voltage output, with analog output, with TEDS, G-force, for crash tests, analog
- Acceleration range
Max.: 19,613 m/s²
(64,348 ft/s²)Min.: -19,613 m/s²
(-64,348 ft/s²)- Frequency
Max.: 2,500 Hz
Min.: 0 Hz
Description
Sensor overview
Triaxial piezoresistive (MEMS) accelerometer designed for high-impact and shock measurement in crash and test environments.
Main features
Technology
The ASC 75C1 uses a proven MEMS design with four variable resistors arranged in a Wheatstone bridge. It provides a wide dynamic bandwidth from 0 Hz to 2.5 kHz and impact resistance up to 5,000 g. Individual sensitive axes can be repaired if required and the sensor can be configured with TEDS and EQX data.
Housing
Lightweight aluminum housing with protection class IP65. Integrated cable with configurable length and choice of connectors. Typical mass: 13 g. Operating temperature range: -20°C to +80°C.
Applications
Intended for high-impact and crash/shock applications such as frontal and side impact tests in the automotive sector and other industrial shock tests. Category: crash sensors. Suitable for laboratory and field testing where high impact resistance is required.
Technical specifications
Triaxial piezoresistive (MEMS) accelerometer designed for high-impact and shock measurement in crash and test environments.
Main features
- Sensor technology: Piezoresistive (MEMS, Wheatstone bridge)
- Axes: Triaxial
- Output: Analog voltage
- Measurement ranges: ±500 g, ±1000 g, ±2000 g
Technology
The ASC 75C1 uses a proven MEMS design with four variable resistors arranged in a Wheatstone bridge. It provides a wide dynamic bandwidth from 0 Hz to 2.5 kHz and impact resistance up to 5,000 g. Individual sensitive axes can be repaired if required and the sensor can be configured with TEDS and EQX data.
Housing
Lightweight aluminum housing with protection class IP65. Integrated cable with configurable length and choice of connectors. Typical mass: 13 g. Operating temperature range: -20°C to +80°C.
Applications
Intended for high-impact and crash/shock applications such as frontal and side impact tests in the automotive sector and other industrial shock tests. Category: crash sensors. Suitable for laboratory and field testing where high impact resistance is required.
Technical specifications
- Model: ASC 75C1
- Sensor type: Analog accelerometer
- Sensor technology: Piezoresistive (MEMS, Wheatstone bridge)
- Axes: Triaxial
- Output: Voltage
- Measurement ranges: ±500 g, ±1000 g, ±2000 g
- Frequency range (dynamic): 0 Hz to 2.5 kHz
- Impact resistance: up to 5,000 g
- Housing material: Aluminum
- Protection class: IP65
- Integrated cable: configurable length and connectors
- Operating temperature range: -20°C to +80°C
- Typical mass: 13 g
- Additional: Category - crash sensors; configurable with TEDS and EQX; repairable single sensitive directions
