Biaxial accelerometer ASC EQ-2215
capacitiveMEMSIP65

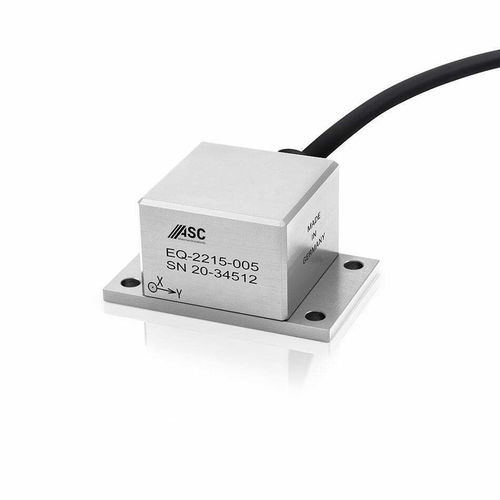

Biaxial accelerometer - ASC EQ-2215 - ASC - capacitive / MEMS / IP65
Biaxial accelerometer - ASC EQ-2215 - ASC - capacitive / MEMS / IP65
Add to favorites
Compare this product
Go to the ASC website for more information

Characteristics

Number of axes
biaxial
Technology
capacitive, MEMS
Other characteristics
IP65, for continuous structure monitoring, analog, with built-in electronics, with analog output, low-noise, voltage output
Acceleration range

Min.: -49 m/s²
(-161 ft/s²)

Max.: 49 m/s²
(161 ft/s²)

Frequency

Min.: 0 Hz

Max.: 700 Hz

Description

Overview
Sensors ASC EQ-2215 are biaxial MEMS capacitive accelerometers engineered for ultra-low-noise seismic and vibration measurements. Integrated electronics provide a differential analog voltage output (±2.7 V FSO) and a flexible supply range from 5 to 40 VDC. Typical noise density is < 1.2 µg/√Hz and resolution < 1 µg. Devices meet motion class B requirements for seismic monitoring. A built-in self-test enables functional verification.

Housing
The instrument is housed in a stainless steel enclosure with protection class IP65. It is supplied with a detachable cable; cable length and connector configuration are configurable to installation requirements.

Applications
Intended for continuous monitoring of safety-critical building components and civil structures (e.g., power plants, tunnels, bridges) where detection of very small vibration amplitudes and seismic events is required. Suitable for structural health monitoring and vibration analysis.

Key product attributes
  • Sensor type: Accelerometer (analog)
  • Sensor technology: MEMS capacitive
  • Number of sensitive directions: Biaxial
  • Output signal: Differential analog voltage (±2.7 V FSO)
  • Measurement ranges [g]: ±3 g, ±5 g
  • Power supply: 5 to 40 VDC
  • Noise / resolution: Noise density < 1.2 µg/√Hz, resolution < 1 µg
  • Self-test: Built-in self-test function


Environment & mechanical
  • Temperature range: -40 °C to +85 °C
  • Protection class: IP65
  • Housing material: Stainless steel


Technical characteristics / specifications
  • Model: ASC EQ-2215
  • Technology: MEMS capacitive
  • Sensitive axes: Biaxial
  • Output: Differential analog voltage, ±2.7 V FSO
  • Supply voltage: 5–40 VDC
  • Measurement ranges: ±3 g, ±5 g
  • Noise density: < 1.2 µg/√Hz
  • Resolution: < 1 µg
  • Seismic performance: Meets motion class B
  • Built-in self-test: Yes
  • Frequency range (±3 dB): DC to 700 Hz
  • Operating temperature: -40 °C to +85 °C
  • Protection class: IP65
  • Housing: Stainless steel
  • Detachable cable with configurable length and connectors
