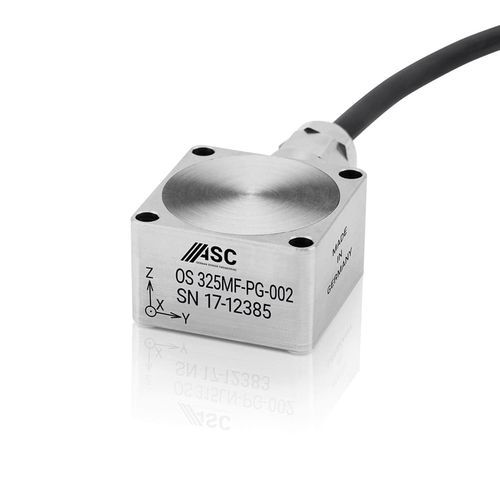

Triaxial accelerometer ASC OS-325MF-PG

MEMScapacitivehermetic

Overview
The ASC OS-325MF-PG is a triaxial analog accelerometer based on MEMS capacitive sensor technology. It provides a differential analog voltage output (±2.7 V FSO) and is designed for reliable operation in harsh environments, with integrated electronics for flexible power supply and high shock resistance.

Technology
Sensors of type ASC OS-325MF-PG use MEMS capacitive sensing with integrated signal conditioning. The MF (Medium-Frequency) series offers a broad usable frequency range and stable analog differential output. Key electrical features include a differential output of ±2.7 V FSO and an operating supply voltage from 5 to 40 VDC. Measurement ranges are available from 2 g up to 200 g to match application needs.

Housing
The accelerometer is housed in a hermetically sealed stainless steel enclosure rated to IP68. The device includes an integrated cable that can be supplied to customer-specified lengths and with a choice of connectors to suit installation and wiring requirements.

Applications
The hermetic stainless steel housing and high shock tolerance make the OS-325MF-PG suitable for demanding industrial environments, for example rail transport (bogie stability testing to EN 13749), condition monitoring of construction machinery, vehicle component testing and other vibration or shock measurement tasks.

Key product details

• Sensor type: Accelerometer analog
• Sensor technology: MEMS capacitive
• Number of sensitive directions: Triaxial
• Output signal: Differential analog voltage (±2.7 V FSO)
• Measurement ranges [g]: 2, 5, 10, 30, 50, 100, 200

Environmental & mechanical

• Temperature range: -40 °C to +100 °C
• Protection class: IP68
• Housing material: Stainless steel
• Shock resistance: up to 6,000 g

Electrical & dynamic

• Supply voltage: 5 to 40 VDC
• Frequency response (MF series): 0 Hz to 7 kHz (±3 dB)

Technical specifications

• Model: ASC OS-325MF-PG
• Technology: MEMS capacitive
• Axes: Triaxial
• Output: Differential analog voltage, ±2.7 V FSO
• Supply voltage: 5–40 VDC
• Measurement ranges: 2 g, 5 g, 10 g, 30 g, 50 g, 100 g, 200 g
• Frequency response: 0 Hz to 7 kHz (±3 dB)
• Shock resistance: up to 6,000 g
• Temperature range: -40 °C to +100 °C
• Protection class: IP68
• Housing material: Stainless steel; hermetically sealed housing
• Housing: Integrated cable with configurable length and connector options
• Intended applications: Rail transport (e.g. bogie stability testing EN 13749), condition monitoring in construction and vehicle component testing
