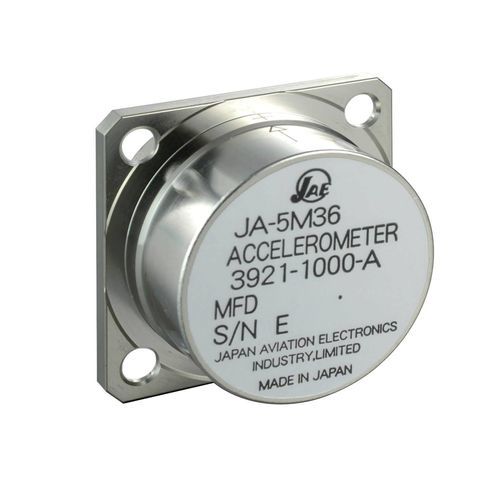

Uniaxial accelerometer JA-5M36

MEMScurrent outputwith built-in electronics

Technology
JA-5M36 are servo-balanced quartz accelerometers (MEMS quartz) from JAE with integrated electronics providing an analog current output. The design delivers resolution better than 1 µg and combined scale factor and bias shift ≤ 1.8 mg over one year. Rated for operation from -40 °C to +150 °C for rugged downhole use.

Applications

• Downhole applications including directional drilling
• Measurement-While-Drilling (MWD) / Logging-While-Drilling (LWD)
• Wireline operations
• Rugged, high-temperature environments up to 150 °C

Technical specifications

• Model: JA-5M36
• Sensor type: Accelerometer (analog)
• Sensor technology: MEMS quartz (servo-balanced quartz)
• Number of sensitive axes: Uniaxial
• Output signal: Current (analog)
• Measurement range: ±4 g
• Resolution: < 1 µg
• Long-term stability (combined scale factor and bias): ≤ 1.8 mg over one year
• Operating temperature range: -40 °C to +150 °C

Export regulation
There is a general export license for this product; no individual export license from the Japanese government is required.
